PM-3033 Modbus RTU 3-Phase Power Meter, 1A/5A CT Input
Three-phase Modbus RTU power meter with direct 1A/5A secondary-side CT inputs, true RMS measurement and energy readings, for DIN-rail mounting.
- Bi-directional energy measurement with true RMS voltage and current readings
- Direct 1A/5A secondary-side CT input, no dedicated CTs required
- Energy analysis for 3P4W, 3P3W, 1P3W and 1P2W wiring
- Voltage input range of 10 ~ 500 V
- Active power accuracy better than 0.5% (PF=1; input current above 0.5 A)
- Total harmonic distortion (THD) measurement
220,00 € per piece
| 1–9 pcs | 220,00 € | |
|---|---|---|
| 10–30 pcs | 213,00 € | −3 % |
| 31+ pcs | 209,00 € | −5 % |
Informace o výrobku "PM-3033 Modbus RTU 3-Phase Power Meter, 1A/5A CT Input"

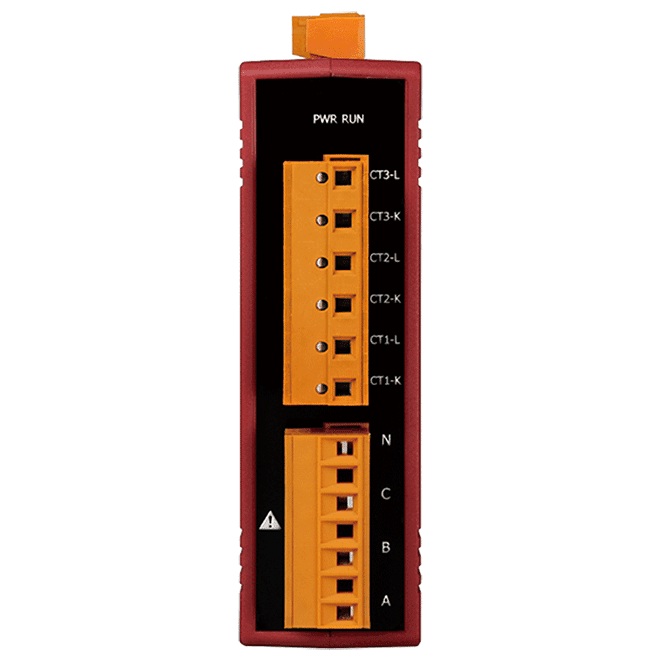

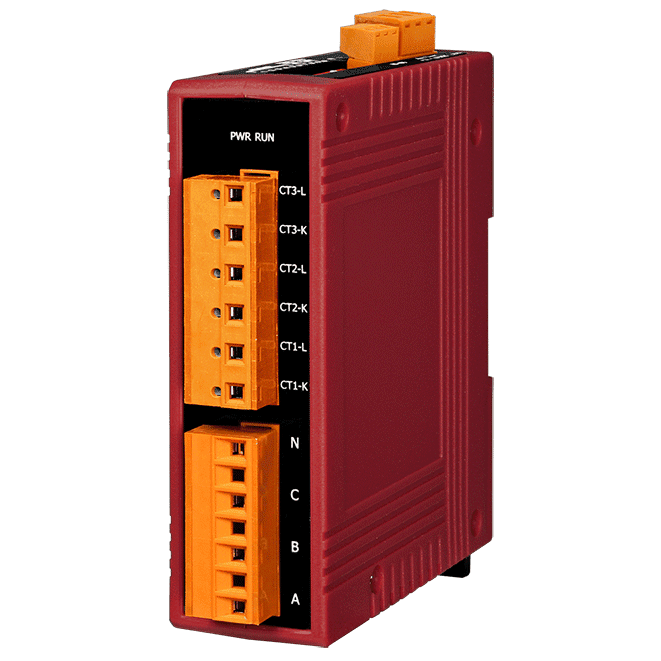

PM-3033 CR is a three-phase power meter with an RS-485 port running Modbus RTU. It reports true RMS voltage and current, active, reactive and apparent power and energy, power factor and frequency, with data refreshed once per second, so engineers can track consumption on running equipment.
Current inputs accept 1A or 5A secondary-side CTs directly, so dedicated metering CTs are not needed, which keeps installation costs down. The meter supports 3P4W, 3P3W, 1P3W and 1P2W arrangements, accepts voltage inputs from 10 to 500 V, and can be used on both low-voltage primary-side and secondary-side circuits.

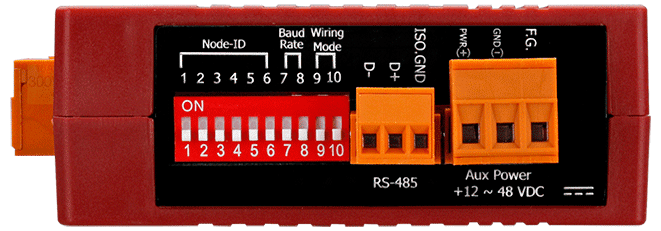

The baud rate is selectable by DIP switch (9600, 19200 default, 38400 or 115200), and data formats run from N,8,1 (default) to O,8,2. The plastic DIN-rail housing provides 3000 VDC isolation on the serial port and operates from -20 to +70 °C.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 3-phase: 1 1-phase: 3 @ 1P2W-1CT 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current | 0.05 A ~ 5 A |
| Input Frequency | 50/60 Hz |
| W Accuracy | Better than 0.5% (PF=1; Input Current >0.5A) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 9600, 19200 (default), 38400, 115200; DIP Switch Selectable |
| Data Format | N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
| Protocol | Modbus RTU |
| Isolation | 3000 VDC |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 2W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
