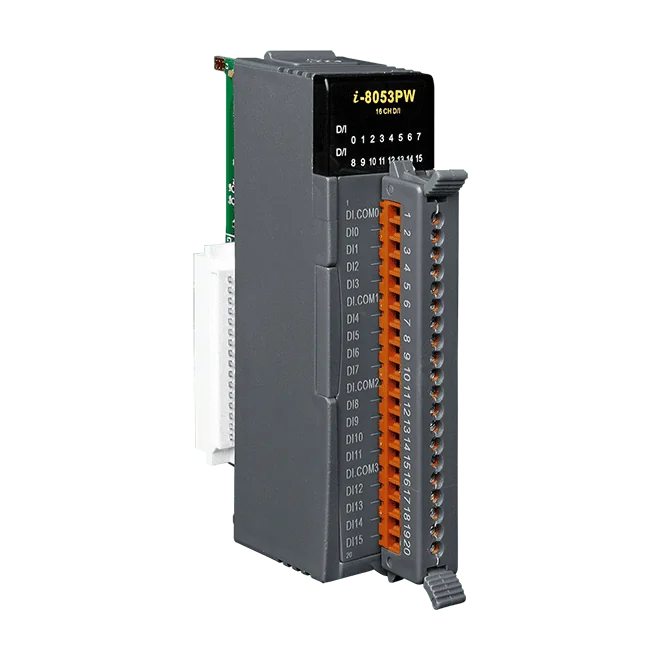

I-8053PW-G 16-Channel Isolated Wet DI Module with Low Pass Filter

I-8053W-G is a 16-channel digital input module from the I-8K/I-87K High Profile series, intended for engineers who need to read a bank of switch or sensor signals with galvanic separation. It accepts wet contact signals in the +10 ~ +30 VDC range and can also be used with dry contacts, which extends its reach to field wiring up to 500 metres in length.Each channel is isolated from the logic side and the module offers 3750 VDC intra-module isolation, together with ±4 kV ESD protection on each terminal. A status LED is provided for power and communication, and one LED per input channel shows the state of each input, which simplifies commissioning and fault finding on the bench or in the cabinet.Typical use in building, factory and machine automation, remote maintenance and diagnosis, and test equipment.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

The I-8053W-A1-G is a 16-channel digital input module from the I-8K/I-87K High Profile series, designed to read wet contact signals in industrial control systems. Each channel accepts an ON level from +3.5 to +30 VDC and reads OFF at +1 VDC maximum, with sink/source (NPN/PNP) input type support.Each input is photocoupler isolated, and the module provides 3750 VDC intra-module isolation. Its ±4 kV contact ESD protection on every terminal, tested to IEC 61000-4-2, supports reliable operation where electrical noise is a concern.Status is shown by 16 I/O LEDs and a power and communication LED, which helps with commissioning and fault finding. The module draws 0.4 W maximum and operates from -25 to +75 °C.ApplicationsMonitoring wet contact digital inputs in industrial environments

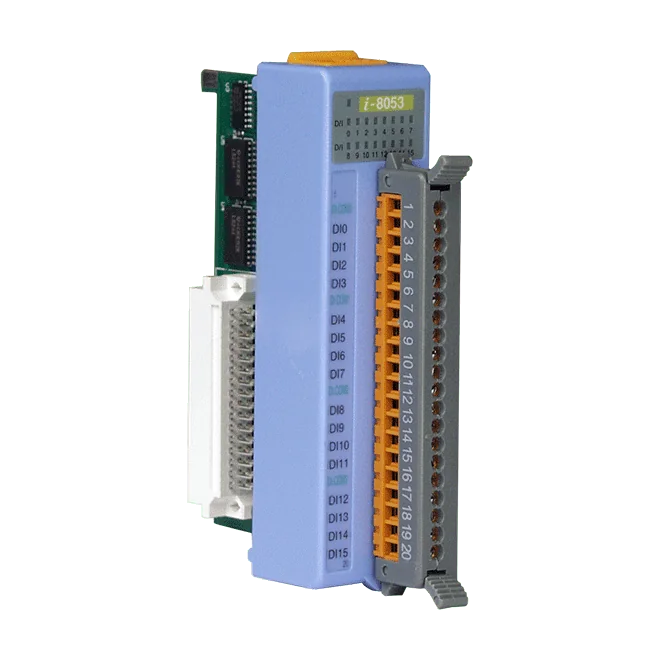

I-8053 CR is a 16-channel digital input module for reading wet contact signals in the 10~30 VDC range. Each input works with either sink or source wiring, so one module suits a wide range of field devices without changing the hardware.Every channel has its own status LED, and a separate power and communication LED is provided, so the state of each input can be checked at a glance during commissioning and fault finding. Photocoupler isolation and 3750 VDC intra-module isolation help keep the inputs stable in electrically noisy plants, while 4 kV ESD protection on each terminal adds robustness during installation and service.The module suits building, factory and machine automation projects, as well as remote maintenance and diagnosis tasks and test rigs. It is specified for an operating range of -25 ~ +75 °C and a power consumption of 0.4 W maximum.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

The I-8053-G CR is a 16-channel digital input module for monitoring wet contact signals in industrial control systems. Each channel accepts sink or source type inputs, so the module can be wired to either NPN or PNP field devices within the 10~30 VDC input range.Photocoupler isolation and 3750 VDC intra-module isolation enhance noise immunity in industrial environments. The module also provides 4 kV ESD protection on each terminal, which makes it suitable for engineers working with the I-8K/I-87K low-profile series in gray cover form.A status LED for power and communication plus one LED per I/O channel makes it straightforward to check input states during commissioning and fault finding. The module is rated for an operating temperature of -25 ~ +75 °C and a storage temperature of -40 ~ +85 °C.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment
