DN-DI-32DW Termination Board, 32-ch Digital Input with Fuse Protection
32-channel termination board for digital inputs with high EMS protection, removable 320mA fuses per channel and support for both dry and wet contact wiring.
- 32 digital input channels with sink and source connections
- Dry and wet contact wiring selected by jumper settings
- Removable 320mA fuse protection on each channel with local fuse-failure indication
- Overvoltage and transient protection on field loops
- One COM pin per channel, removing the need for an extra terminal block
- High EMS protection
809,00 € per piece
| 1–9 pcs | 809,00 € | |
|---|---|---|
| 10–30 pcs | 785,00 € | −3 % |
| 31+ pcs | 769,00 € | −5 % |
Informace o výrobku "DN-DI-32DW Termination Board, 32-ch Digital Input with Fuse Protection"

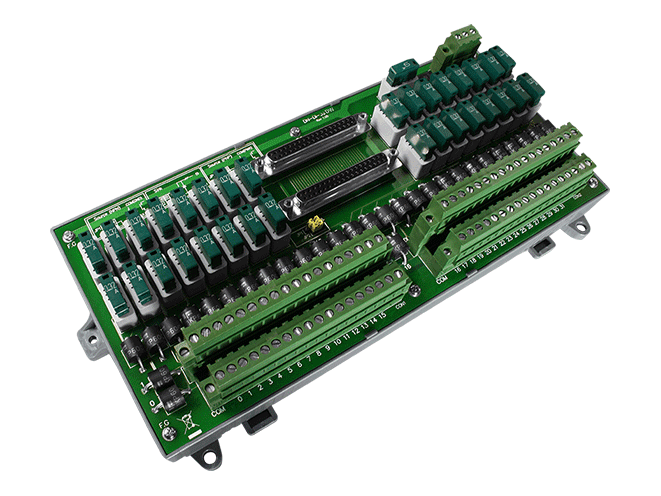

The DN-DI-32DW CR is a 32-channel termination board for digital input wiring. It offers sink and source connections, so it can be matched to the field device and the input module it feeds. Jumper settings select the wire connection, allowing the board to handle both dry and wet contact devices.
Each channel has its own removable fuse on the field loop, rated 320mA and with local indication of fuse failure. Overvoltage and transient protection, together with high EMS protection, help protect the field wiring. Each channel also provides a COM pin, so a separate terminal block is not needed to extend the common connection.
The board mounts on a DIN rail or directly on a wall. Its rated operating temperature is -25 ~ 75 °C, with humidity of 5 ~ 95% RH, non-condensing. When using dry contact wiring, an external power supply must also be connected.
Applications
- Wiring field devices to digital input modules
- Digital input connections using dry or wet contacts
| Product type: | Termination board |
|---|---|
| Digital inputs: | 32 |
| Operating temperature: | -25 ~ 75 °C |
| Mounting: | DIN-rail & wall |
Specifications
| Digital Input | |
|---|---|
| Channels | 32 |
| Type | Dry, Wet |
| Fuse Protection | 320mA for each channel (With physical indication) |
| Mechanical | |
| Dimensions (mm) | 126.6 x 274.6 x 25.5 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
