I-8014W-G Analog Input Module, 16/8-ch Voltage/Current, 16-bit 250 kS/s
16-bit analog input module with up to 16 single-ended or 8 differential channels, 250 kS/s sampling and a 4 k-sample FIFO buffer for high-speed data acquisition.

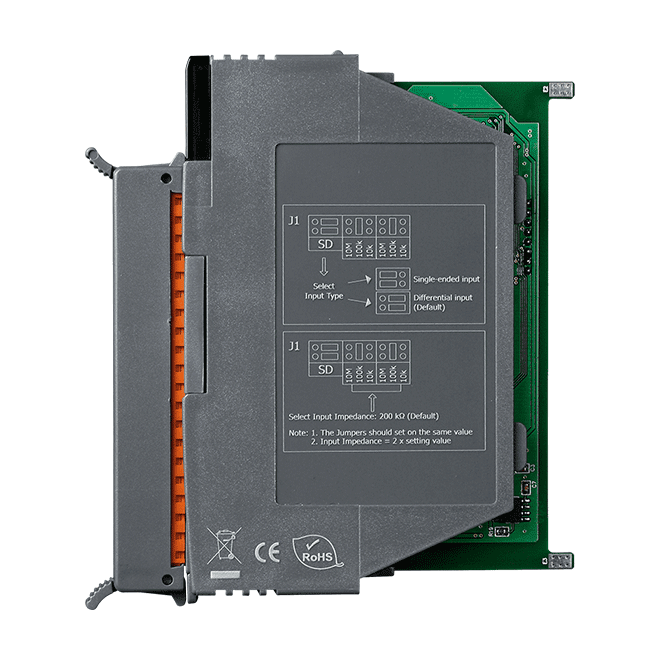

- Up to 16 single-ended or 8 differential inputs, selectable by jumper
- Voltage ranges of ±10 V, ±5 V, ±2.5 V and ±1.25 V, plus ±20 mA current input with an optional external 125 Ω resistor
- 16-bit ADC with 250 kS/s sampling in single-channel pacer mode
- 4 k-sample onboard FIFO buffer with interrupt when the pre-defined level is reached
- Magic Scan with per-channel input ranges and Virtual Sample and Hold operation
- Internal or external trigger start with post-trigger external trigger mode
353,00 € per piece
| 1–9 pcs | 353,00 € | |
|---|---|---|
| 10–30 pcs | 342,00 € | −3 % |
| 31+ pcs | 335,00 € | −5 % |
Informacije o izdelku "I-8014W-G Analog Input Module, 16/8-ch Voltage/Current, 16-bit 250 kS/s"

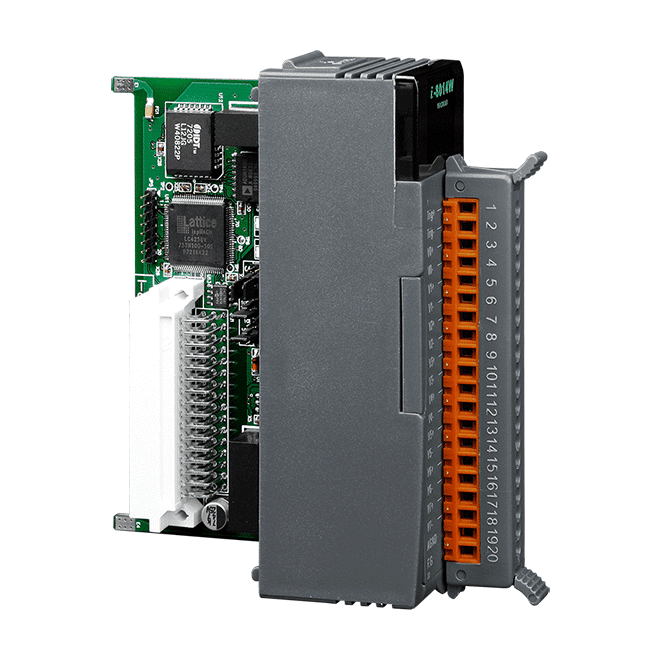

I-8014W-G CR is a high-performance analog input module for engineers who need fast, accurate capture of voltage and current signals. It provides up to 16 single-ended or 8 differential inputs, selectable by jumper, with 16-bit resolution and a single-channel pacer sampling rate of 250 kS/s.
The Magic Scan function lets each input channel use its own input range, and single-channel scanning keeps the full 250 kS/s rate. Magic Scan can run as a standard scan or as a Virtual Sample and Hold function, which offers sample-and-hold style operation without the cost usually associated with that feature on analog input cards.
A 4 k-sample onboard FIFO buffer stores conversion results. When the sample count exceeds a predefined FIFO level, an interrupt notifies the host, which suits time-critical acquisition tasks such as vibration analysis. Internal or external trigger start and post-trigger external trigger modes are supported.
Applications
- High-speed data acquisition systems
- Vibration analysis
| Product type: | Analog Input Module |
|---|---|
| Analog inputs: | 16 single-ended / 8 differential |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 16-ch Single-ended/8-ch Differential |
| Type | Voltage Current |
| Range | Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC Current: -20 mA ~ +20 mA (Requires Optional External 125 Ω Resistor) |
| Resolution | 16-bit |
| Accuracy | 0.05% of FSR |
| Sampling Rate | Single Channel Pacer Mode: 250 kS/s Single Channel Polling Mode: 45 kS/s 8 Channels Polling Mode: 25 kS/s |
| Input Impedance | 20 K, 200 K, 20 M (Jumper Select) |
| Overvoltage Protection | -45 VDC ~ +60 VDC |
| Power | |
| Consumption | 2.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
