ET-7018Z/S Ethernet I/O Module with 10-ch Thermocouple Input, 6-ch DO

Ethernet I/O Module with 10-ch Thermocouple Input, 6-ch DO. Includes DN-1822 Daughter Board, CA-252518D-1 1.8 m Cable, 4PAPP-006-G.

Ethernet I/O Module with 10-ch Thermocouple Input, 6-ch DO. Includes DN-1823 Daughter Board, CA-2525015D 15 cm Cable, 4PAPP-006-G.

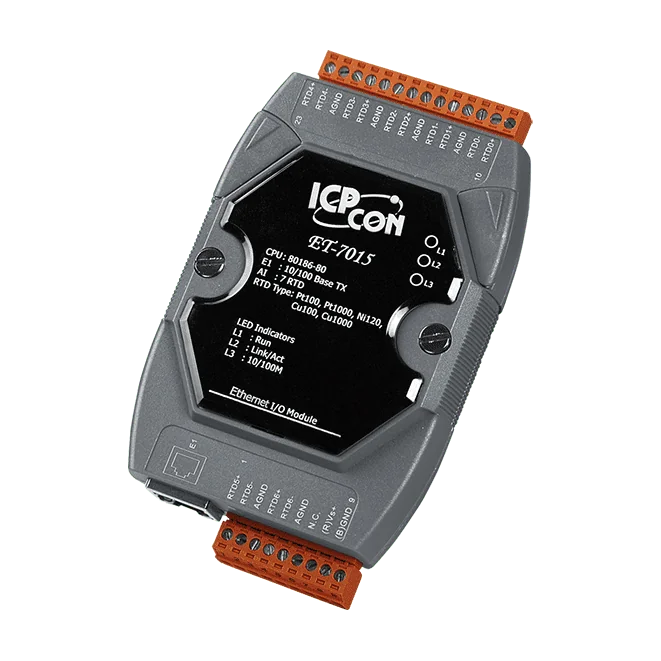

The ET-7015 is built for measuring temperature over long cable runs. Each of its 7 channels accepts Pt100, Pt1000, Ni120, Cu100 or Cu1000 sensors, and three-wire RTDs are compensated automatically whatever the wire length, so the lead resistance does not have to be tuned out by hand.Open-wire detection on every channel helps identify broken sensor leads quickly. Communication runs over Modbus TCP and Modbus UDP, with a built-in web server and web HMI for configuration and monitoring. Access is controlled by ID, password and IP filter, and dual watchdogs support fault recovery.Isolation is rated at 2500 VDC for I/O and 1500 VDC for Ethernet. The module is RoHS-compliant, offers 4 kV ESD protection, and runs from +10 ~ +30 VDC on a DIN-rail mount across an operating range of -25 ~ +75 °C. Typical uses include building automation, factory and machine automation, remote maintenance and diagnosis, and test equipment.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

The ET-7017 CR is an Ethernet I/O module that brings eight differential analogue inputs and four digital outputs onto a Modbus network. Each analogue channel can be set to voltage or current and given its own input range, which suits mixed sensor setups without changing hardware. This ordering code is listed with RoHS compliance.The digital outputs are isolated open-collector sink types rated at 700 mA per channel, with short-circuit and overload protection. Power-on and safe values are programmable, so outputs can be defined for start-up and fault conditions. Sampling can be switched between normal mode at 10 Hz and fast mode at 50 Hz across all channels.Host communication uses Modbus TCP or Modbus UDP over a single 10/100 Base-TX RJ-45 port. A built-in web server and web HMI are provided, Ethernet access is controlled by ID, password and IP filter, and dual watchdog functions are included.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment
