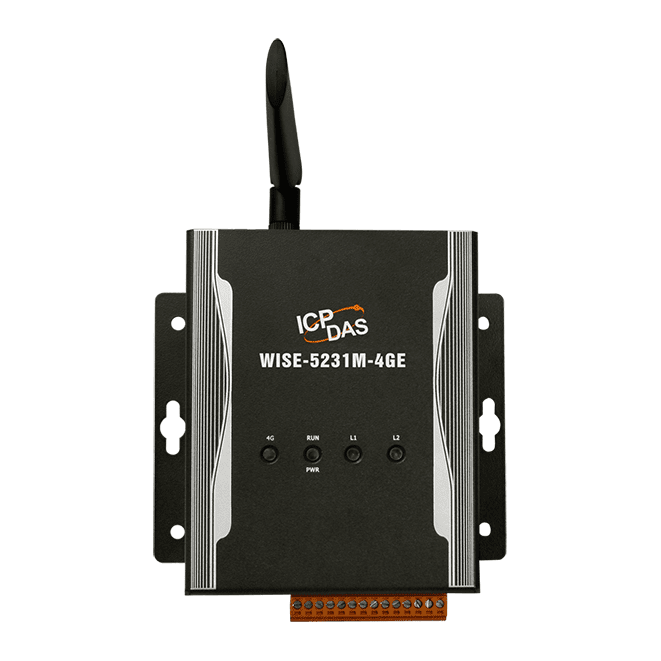

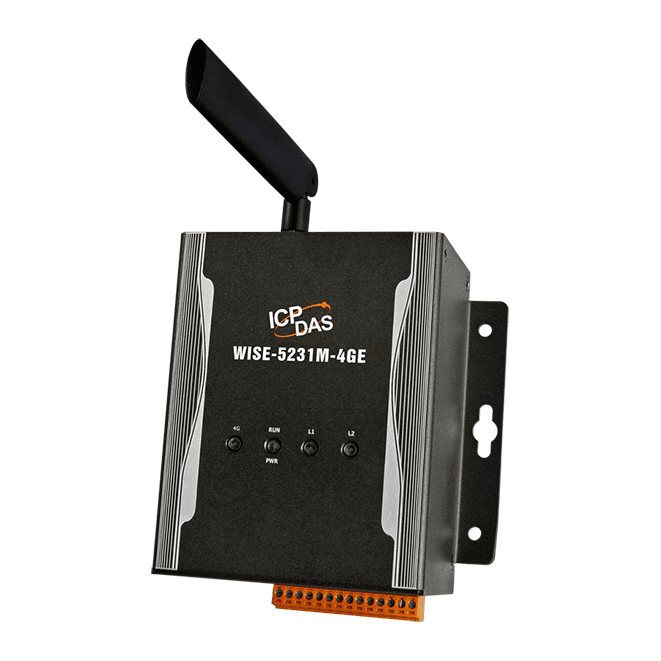

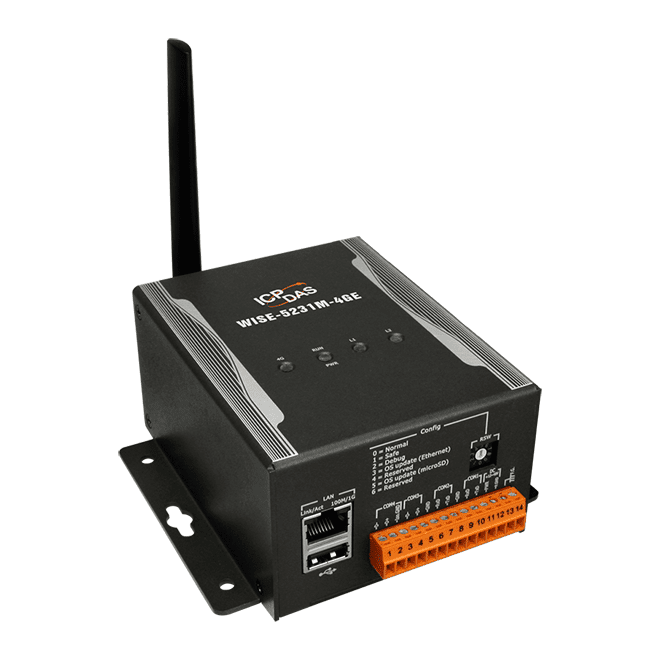

WISE-5231M-4GE IIoT Edge Controller, 4G Cellular, Metal Case
Metal-case WISE IIoT edge controller with browser-based IF-THEN-ELSE logic, Modbus TCP/RTU and MQTT support, and 4G connectivity for EMEA, Korea, Thailand, India and Taiwan.
- Browser-based IF-THEN-ELSE logic configuration with no extra software tool required
- Connects XV-board, DCON or Modbus RTU slave modules (up to 32) and Modbus TCP slave modules (up to 16)
- Modbus TCP/RTU, SNMP, FTP and MQTT protocol support
- 4G/3G wireless communication for EMEA, Korea, Thailand, India and Taiwan frequency bands
- Timer, schedule, data logger and recipe functions
- LINE, SMS and email real-time message sending
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Já não está disponível
Informações de produto "WISE-5231M-4GE IIoT Edge Controller, 4G Cellular, Metal Case"
The WISE-5231M-4GE is a metal-cased IIoT edge controller for remote logic control and monitoring of field I/O. Logic is configured through a web browser, so engineers can build IF-THEN-ELSE rules without writing code or installing additional software.
On the I/O side, the controller connects XV-board, DCON and Modbus RTU slave modules, as well as Modbus TCP slave modules, allowing one unit to gather data from mixed hardware. Timers, schedules, data logging and recipe operations support local automation, while LINE, SMS and email messages can report events in real time.
For remote connectivity, the 4G/3G interface and MQTT client allow data to reach IoT platforms such as Microsoft Azure and IBM Bluemix, or to be managed with ICP DAS IoTstar. The 4G frequency band is specified for EMEA, Korea, Thailand, India and Taiwan.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | RJ-45, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 1 Ethernet, 3 COM |
| Isolation: | COM4 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify) • non-SSL & SSL Email sending function • SMS message sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1.0 GHz) |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running 1 x Modem Status 1 x Mobile Network Status |
| 2G System | |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10; GPRS station class B |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download: Max. 100 Mbps; Upload: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 6.5W |
| Mechanical | |
| Dimensions (mm) | 117 × 126 × 58 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
