RM-116 16-ch Form C Power Relay Board, 16 A @ 250 VAC
16-channel Form C power relay board for DIN-rail mounting, with 16 A @ 250 VAC contacts and 24 V power relays.
- 16 Form C relay channels, each rated 16 A @ 250 VAC
- 24 V power relay type
- Reverse polarity protection against improper operation
- Per-channel LED status indication
- DIN-rail mounting
- Operating temperature -20 ~ 70°C, humidity 5% ~ 90% RH non-condensing
222,00 € per piece
| 1–9 pcs | 222,00 € | |
|---|---|---|
| 10–30 pcs | 215,00 € | −3 % |
| 31+ pcs | 210,00 € | −5 % |
Informações de produto "RM-116 16-ch Form C Power Relay Board, 16 A @ 250 VAC"

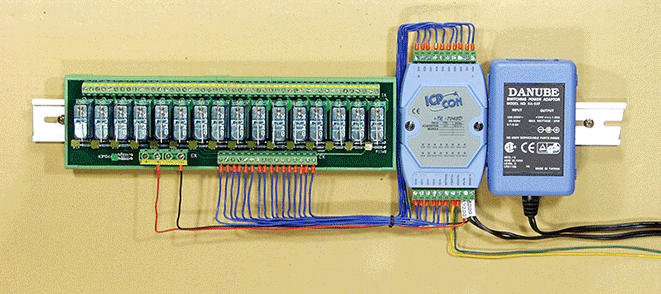

The RM-116 CR is a 16-channel relay board fitted with one Form C power relay per channel. Each contact is rated 16 A @ 250 VAC, so it suits switching higher-current loads from a relay board rather than a low-level signal module.
Reverse polarity protection guards against incorrect wiring, and each channel has its own LED that shows the relay status. The board mounts on DIN rail and is specified for operation from -20 ~ 70°C and 5% ~ 90% RH, non-condensing.
- Dimensions: 270 mm x 87 mm x 63 mm (L x W x H)
- RoHS and WEEE listed
| Product type: | Relay board |
|---|---|
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail |
Specifications
| Relay Output | |
|---|---|
| Channels | 16 X FORM C |
| Type | 24 V Power Relay |
| Contact Rating | 16 A @ 250 VAC |
| Mechanical | |
| Dimensions (mm) | 270 mm x 87 mm x 63 mm (L x W x H) |
| Installation | DIN-rail mounting |
| Environment | |
| Operating Temperature | -20 ~ 70°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
