PROFI-5045 PROFIBUS DP-V0 Remote I/O Module, 24-ch Isolated Digital Output
PROFIBUS DP-V0 slave remote I/O module with 24 isolated sink-type digital outputs, a 650 mA maximum load current with short-circuit protection and GSD-based configuration.
- 24 isolated sink-type digital outputs with common ground
- Load voltage +10 to +40 V, maximum load current 650 mA with short-circuit protection
- PROFIBUS DP-V0 slave with automatic transmission rate detection
- Address range 0 to 99 set by rotary switches
- Configuration via GSD file in any PROFIBUS configurator
- 3750 Vrms field-to-logic isolation and 3000 VDC PROFIBUS-side isolation
271,00 € per piece
| 1–9 pcs | 271,00 € | |
|---|---|---|
| 10–30 pcs | 263,00 € | −3 % |
| 31+ pcs | 257,00 € | −5 % |
Informações de produto "PROFI-5045 PROFIBUS DP-V0 Remote I/O Module, 24-ch Isolated Digital Output"

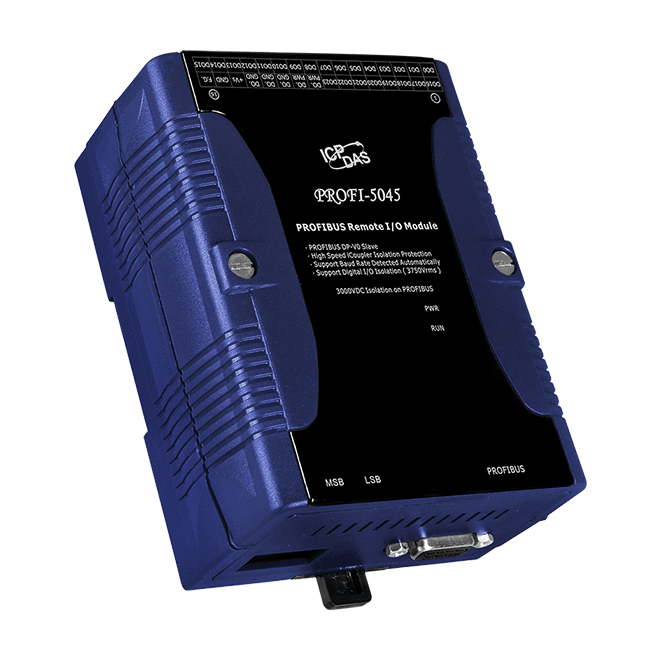

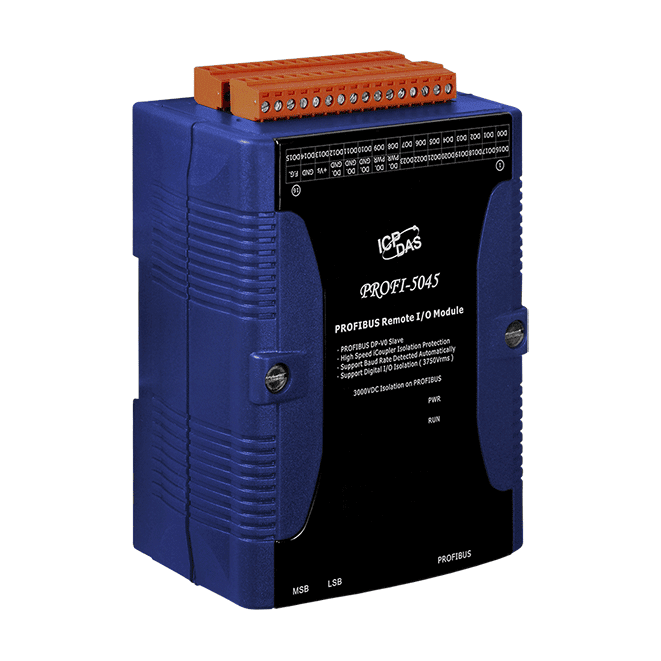

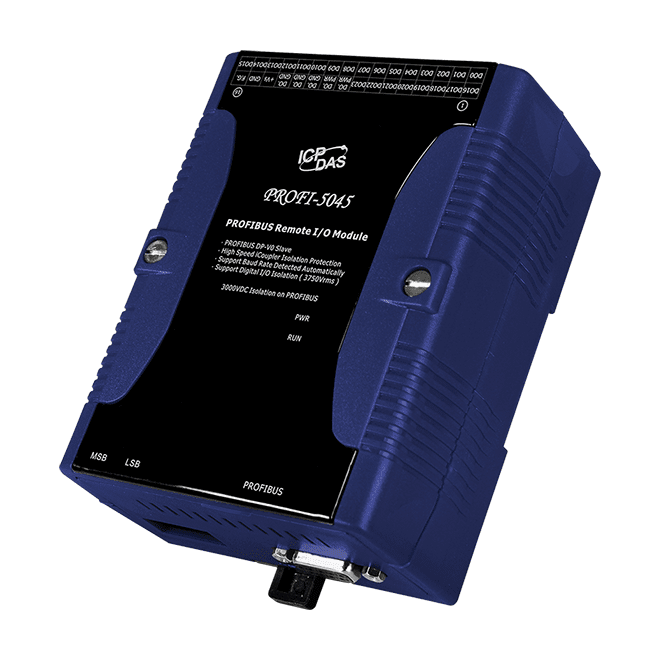

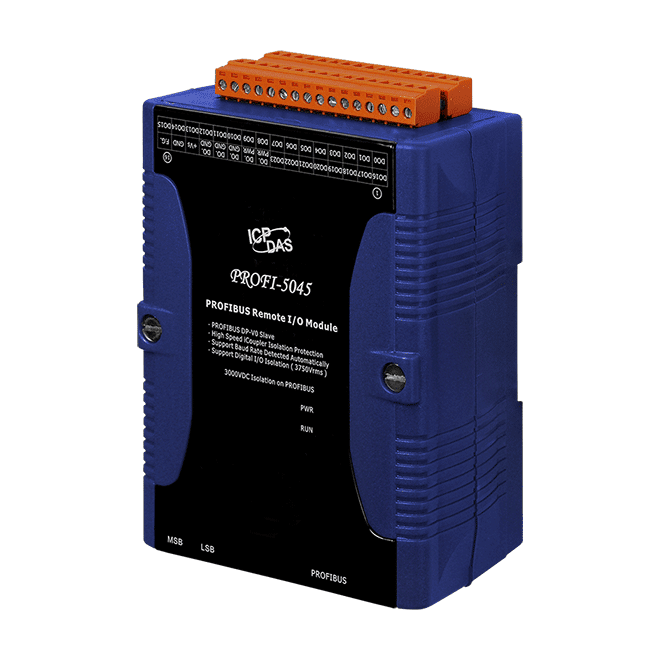

The PROFI-5045 CR is a PROFIBUS DP-V0 slave module that adds 24 digital outputs to a PROFIBUS network. The outputs are sink-type with a common ground, and the field side accepts a load voltage of +10 to +40 V, with a maximum load current of 650 mA and short-circuit protection.
Isolation is built in at several points: 3750 Vrms between field and logic, 3000 VDC on the PROFIBUS side for DC-to-DC, and 2500 Vrms for bus-to-logic, supported by high-speed iCoupler network isolation. Each terminal has its own 4 kV ESD protection.
Addressing is set on rotary switches from 0 to 99 and the transmission rate is detected automatically. I/O configuration is carried out using the GSD file in any PROFIBUS configurator. The module draws 1 W, mounts on DIN-rail and operates from -25 to +75 °C.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0 |
| Digital outputs: | 24 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| LED Indicators | |
|---|---|
| Status | PWR LED, RUN LED |
| Digital Output | |
| Channels | 24 Channels (Sink), Isolated with common ground Load Voltage: +10 ~ +40V Maximum Load Current: 650mA w/ Short-Circuit Protection Isolation Voltage: 3750Vrms |
| PROFIBUS | |
| Controller | Profichip VPCLS2 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
