PISO-CPM100U-D Intelligent CANopen Master PCI Board, 1-Port, Universal PCI
Single-port intelligent CANopen master card for universal PCI slots, with a 9-pin D-Sub connector, CiA 301 v4.02 support and an on-board microcontroller that handles real-time CAN traffic.
- One CANopen master port with CiA 301 v4.02 protocol support
- Node IDs 1 ~ 127, with network scan and master listen mode for monitoring
- Node Guarding, Heartbeat Consumer and EMCY event triggering
- PDO modes include event-triggered, remote-requested, cyclic and acyclic SYNC, with dynamic PDO mapping
- Single-byte PDO output and segmented SDO communication
- EDS file support, automatic node addition at boot and multi-master operation
443,00 € per piece
| 1–9 pcs | 443,00 € | |
|---|---|---|
| 10–30 pcs | 430,00 € | −3 % |
| 31+ pcs | 421,00 € | −5 % |
Informações de produto "PISO-CPM100U-D Intelligent CANopen Master PCI Board, 1-Port, Universal PCI"

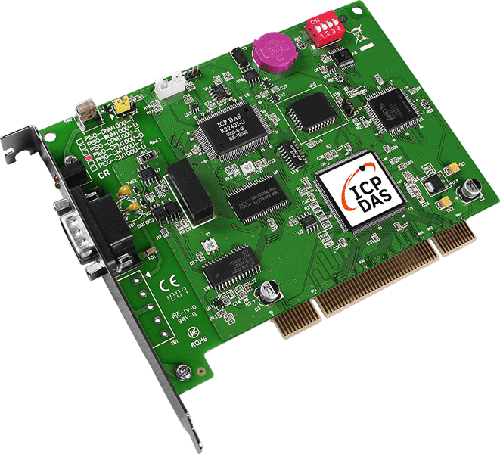

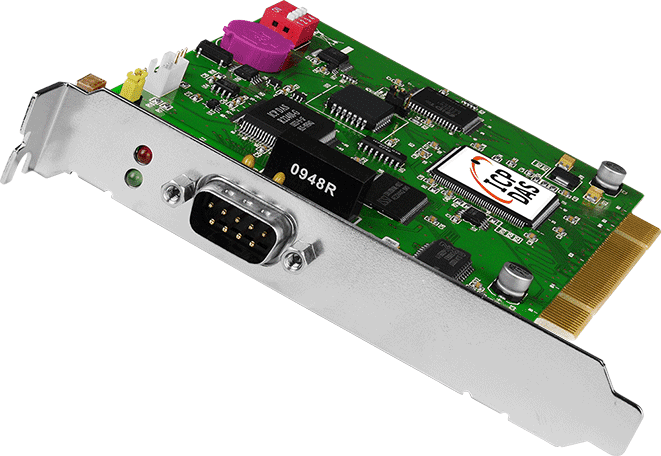

The PISO-CPM100U-D is an active CANopen master card for PC-based control. It fits a Universal PCI slot and provides one CAN channel through a 9-pin D-Sub connector, so engineers can run CANopen network management and node monitoring from a host computer without building their own CAN interface.
CANopen critical processing runs on the card's own 16-bit microcontroller, which uses the MiniOS7 real-time operating system. The host and the CANopen firmware exchange data through memory mapping, and the card is designed to keep up with message handling even when the PCI bus load is high. Host applications can be written with the supplied CANopen library, and the CANopen Motion Library based on CiA-402 is also available for motion control.
Choose this model when you need a PCI-based CANopen master with a D-Sub connection. The -D suffix identifies the 9-pin D-Sub variant, and the card includes a built-in 120Ω terminal resistor, a CPMUtility test tool and VC++, VB.Net and C# demos.
Applications
- Tube bender machine control using built-in CANopen motion control
| Product type: | PCI board |
|---|---|
| Interface: | Universal PCI |
| Protocol: | CANopen |
| Ports: | 1 |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (photo-coupler) |
| Operating temperature: | 0 ~ +60 °C |
Specifications
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK | VB 6.0, BCB 6.0, VC++, C#.net, VB.net |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | 1 x Power and Communication |
| PC Bus | |
| Type | Universal PCI |
| Board No. | By DIP switch |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02 |
| NMT | Master |
| Power | |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | 138 x 127 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
