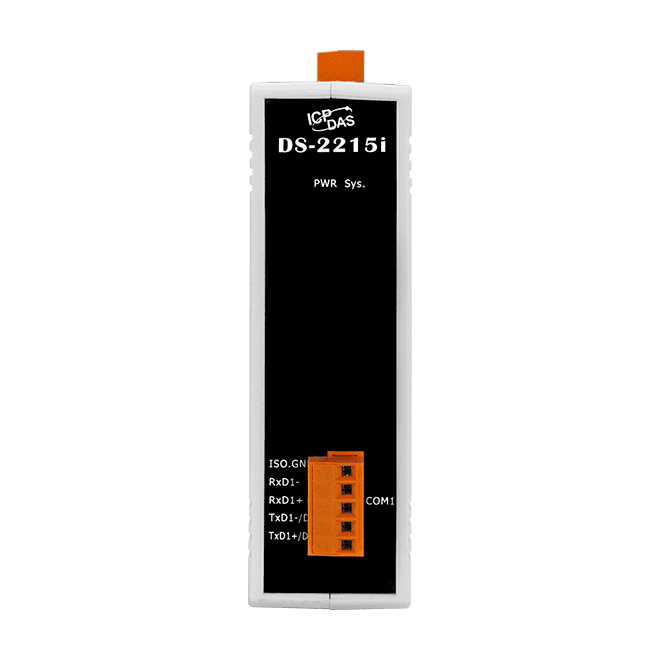

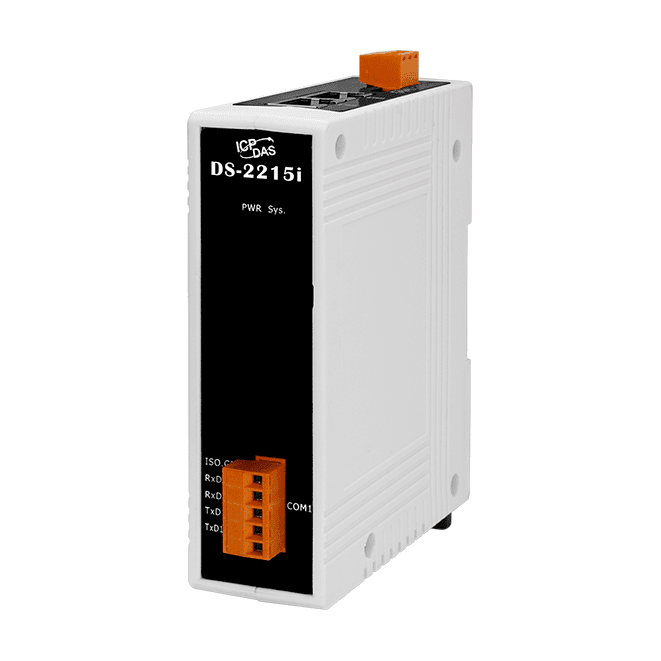

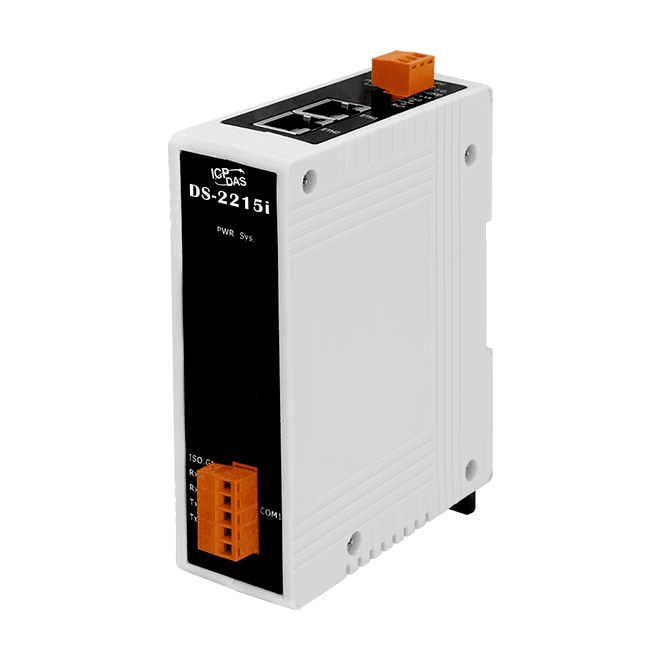

DS-2215i Serial-to-Ethernet Device Server, 1-port Isolated RS-422/485
Serial-to-Ethernet device server with a 2-port Ethernet switch and one isolated RS-422/485 port, giving networked access to legacy serial devices.
- One isolated RS-422/485 serial port with up to 115200 bps and 3000 VDC signal isolation
- Virtual COM, TCP Server and TCP Client application modes
- Pair-connection support for serial-bridge and serial-tunnel applications over TCP/IP
- 2-port Ethernet switch with LAN bypass for daisy-chain wiring
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power input
- Static IP or DHCP network configuration with UDP Search device discovery
160,00 € per piece
| 1–9 pcs | 160,00 € | |
|---|---|---|
| 10–30 pcs | 155,00 € | −3 % |
| 31+ pcs | 152,00 € | −5 % |
Informações de produto "DS-2215i Serial-to-Ethernet Device Server, 1-port Isolated RS-422/485"
DS-2215i CR is a serial-to-Ethernet device server that brings an RS-422/485 serial device onto an Ethernet network without changing the device or its software. It can be run as a virtual COM port on Windows, as a TCP server or as a TCP client, and it can also link two serial devices across TCP/IP in a pair-connection setup.
The built-in 2-port Ethernet switch with LAN bypass allows daisy-chain wiring, which helps when locating devices and reducing cabling. The unit supports static IP or DHCP addressing, UDP-based discovery and a built-in web server for configuration. Power can come from PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block.
The serial port is isolated, with 3000 VDC signal isolation, and the module is housed in a plastic DIN-rail enclosure rated for -25 ~ +75 °C operation. The VxComm Utility supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016.
Applications
- Adding Ethernet connectivity to RS-422/485 serial devices
- Pair-connection serial-bridge or serial-tunnel links over TCP/IP
- Virtual COM access to serial devices from Windows PCs
- Remote access to serial devices on daisy-chained Ethernet networks
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-422/485 |
| Ports: | 2 Ethernet, 1 serial |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 1 x RS-485/422 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 126 mm x 33 mm (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
