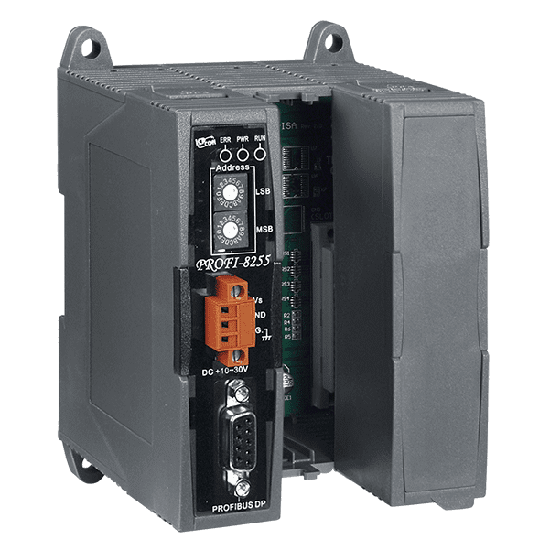

PROFI-8255-G PROFIBUS DP Remote I/O Unit, 2 I/O Slots
PROFI-8255-G is a PROFIBUS DP-V0/DP-V1 slave remote I/O unit with two slots for I-8K and I-87K series modules, configured through a GSD file.
- PROFIBUS DP-V0 and DP-V1 slave with read/write support
- Two slots for I-8K, I-87K Low Profile and I-87K High Profile I/O modules
- Hot-swap support for I-87K High Profile series modules
- Configuration by GSD file, with no additional setting tools required
- Address set by rotary switches from 0 to 126; transmission rate detected automatically
- 3000 VDC isolation on the PROFIBUS side and 2500 Vrms bus-to-logic isolation
351,00 € per piece
| 1–9 pcs | 351,00 € | |
|---|---|---|
| 10–30 pcs | 341,00 € | −3 % |
| 31+ pcs | 333,00 € | −5 % |
Informacje dot. produktu "PROFI-8255-G PROFIBUS DP Remote I/O Unit, 2 I/O Slots"

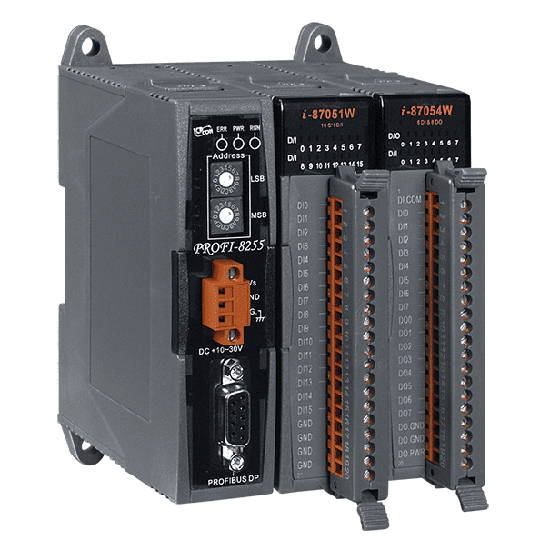

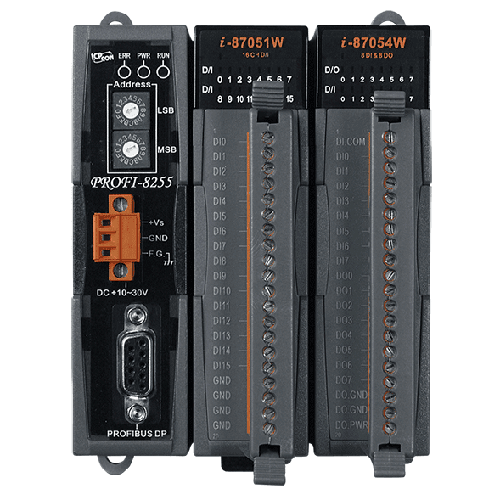

PROFI-8255-G turns a pair of ICP DAS I/O modules into a PROFIBUS DP slave. It accepts I-8K, I-87K Low Profile and I-87K High Profile modules in its two slots, so a single unit can be fitted with the I/O mix a machine needs. The unit supports DP-V0 and DP-V1 with read/write access, and its address is set with rotary switches across 0 to 126.
Configuration is handled entirely from the GSD file, so the I/O modules are chosen and mapped in the PROFIBUS master's configuration tool without any separate setting software. The transmission rate is detected automatically. I-87K High Profile modules can be hot-swapped while the unit is in service, which simplifies maintenance on running lines.

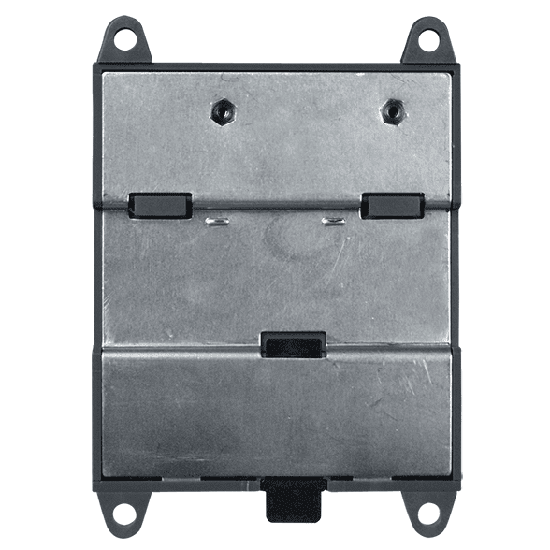

For electrically noisy plants, the unit provides a 3000 VDC isolation barrier on the PROFIBUS side, 2500 Vrms bus-to-logic isolation via High Speed iCoupler, and 4 kV ESD protection on each terminal. It is rated for an operating temperature of -25 to +75 °C and mounts on a DIN rail or a wall.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O unit |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0, DP-V1 |
| Ports: | RS-232 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| I/O Expansion | |
| Slots | 2 |
| COM Ports | |
| Ports | RS-232 on board (For updating firmware)Note 1. |
| PROFIBUS | |
| Controller | Profichil VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 DP-V1 |
| Power | |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 95 x 91 x 132 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -40 ~ +80 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
