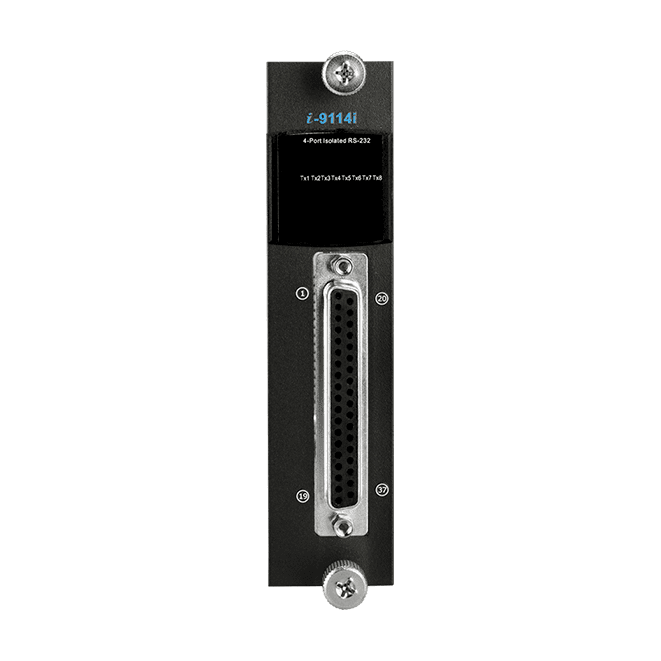

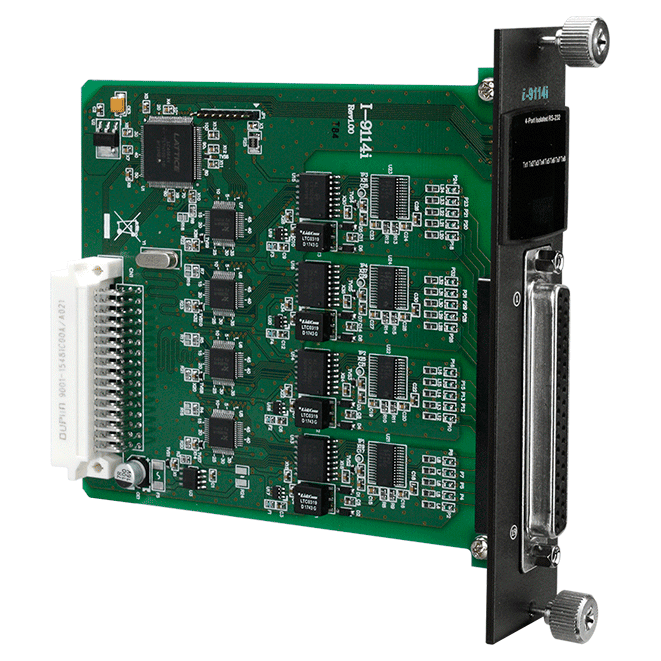

I-9114i 4-Port Isolated RS-232 Serial Communication Module
Four isolated RS-232 serial ports for the I-9K/I-97K series, with a 128-byte FIFO per port and baud rates up to 115200 bps for barcode readers, printers and instruments.
- Four isolated RS-232 ports on one module
- Baud rates up to 115200 bps with full-duplex communication
- 128-byte internal hardware FIFO for each port
- Configurable data bits, stop bits and parity options
- 2500 VDC intra-module isolation
- ±4 kV contact ESD protection on each channel
250,00 € per piece
| 1–9 pcs | 250,00 € | |
|---|---|---|
| 10–30 pcs | 243,00 € | −3 % |
| 31+ pcs | 238,00 € | −5 % |
Informacje dot. produktu "I-9114i 4-Port Isolated RS-232 Serial Communication Module"
The I-9114i CR adds four isolated RS-232 serial ports to PAC and remote I/O systems, letting engineers connect serial devices such as barcode readers, serial printers, intelligent sensors and instrumentation without running a separate serial network.
Each port has an internal 128-byte hardware FIFO and supports baud rates up to 115200 bps, with full-duplex communication. Data formats cover 5 to 8 data bits, 1, 1.5 or 2 stop bits, and None, Even, Odd, Mark or Space parity. Each channel is rated at ±4 kV contact ESD (IEC 61000-4-2), and intra-module isolation is 2500 VDC.
The module is part of the I-9K/I-97K series and draws 1.75 W maximum. It measures 31 x 134 x 134 mm (W x L x H) and operates from -25 to +75 °C, with storage from -40 to +85 °C.
Applications
- Factory automation
- Building automation
- Home automation
- Serial connection of barcode readers and serial printers
- Connection of intelligent sensors and instrumentation
| Product type: | Serial I/O module |
|---|---|
| Interface: | RS-232 |
| Ports: | 4 |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Channel |
| LED Indicators | |
| Status | 1 x Power and Communication 4 x TxD 4 x RxD |
| COM Ports | |
| Ports | 4 x RS-232 |
| Baud Rate | 115200 bps Max. |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 Bytes for Each Port |
| Power | |
| Consumption | 1.75 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 134 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
