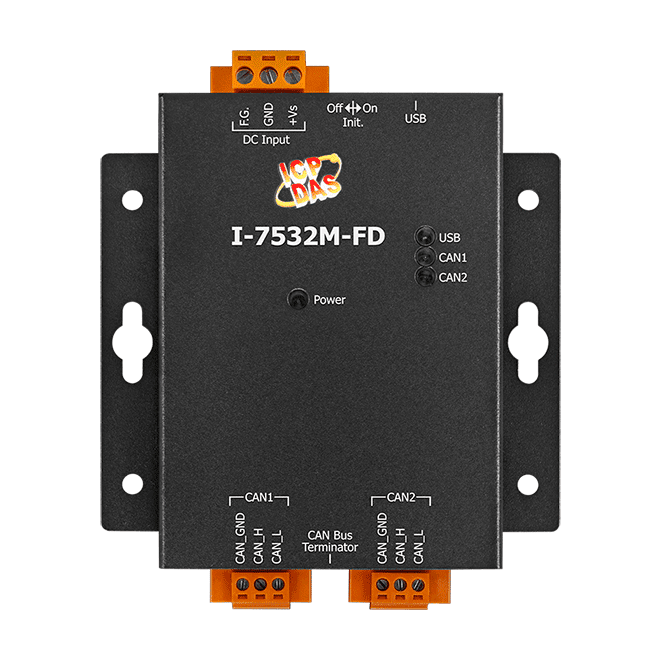

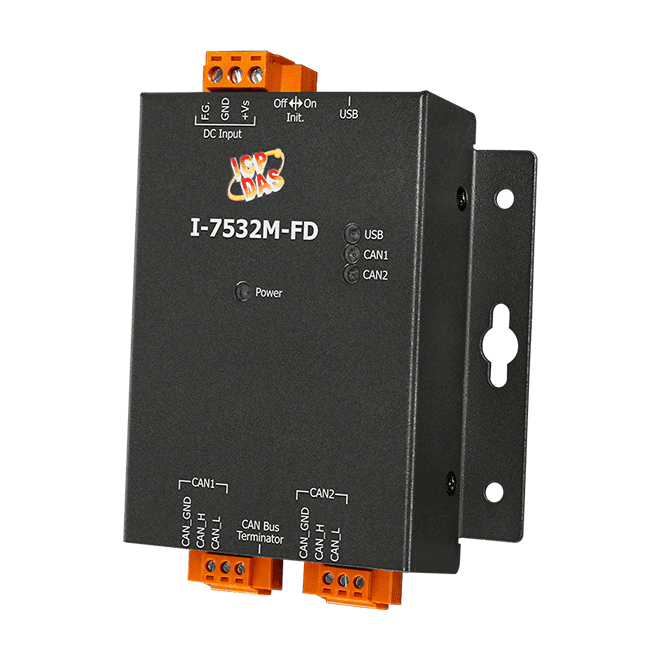

I-7532M-FD 2-Port CAN/CAN FD Bridge with CAN-to-CAN FD Message Transformation
A 2-port CAN/CAN FD bridge that links two CAN or CAN FD networks, transforms messages between the two formats and lets each port run at its own baud rate.

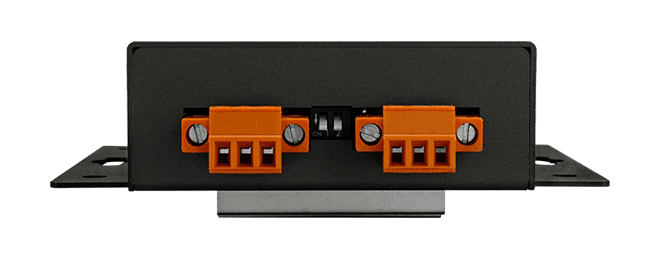

- Two isolated CAN ports compatible with ISO 11898-2 and CAN 2.0 A/B and FD
- Transforms messages between CAN and CAN FD in all combinations
- Frame forwarding, mapping, merging and splitting rules for specific message flows
- CAN bit rates from 10 kbps to 1 Mbps and CAN FD data field rates from 100 kbps to 10 Mbps
- Independent baud rate per port, set with the Utility tool over USB
- Message filter configuration and up to 10,000 fps per port
300,00 € per piece
| 1–9 pcs | 300,00 € | |
|---|---|---|
| 10–30 pcs | 291,00 € | −3 % |
| 31+ pcs | 285,00 € | −5 % |
Informacje dot. produktu "I-7532M-FD 2-Port CAN/CAN FD Bridge with CAN-to-CAN FD Message Transformation"
The I-7532M-FD is a local CAN/CAN FD bridge that connects two CAN or CAN FD networks. Use it to add bus loading capacity, extend communication distance or join segments running at different baud rates. It transforms messages in all four directions: CAN to CAN, CAN to CAN FD, CAN FD to CAN and CAN FD to CAN FD.
Beyond simple forwarding, the bridge supports frame forwarding, mapping, merging and splitting rules. Merging combines several CAN messages into one CAN FD message, and splitting breaks one CAN FD message into several CAN messages. Message filters can be configured, and each port's baud rate can be set independently. Configuration is carried out over USB using the I-7532-FD Utility tool.
The module is built in a metal casing, is rated for -25 ~ +75 °C operation and mounts on a wall or DIN rail. Ordering code I-7532M-FD CR covers the 2-port CAN/CAN FD bridge with RoHS compliance.
Applications
- Connecting CAN and CAN FD networks with different baud rates
- Extending CAN bus distance and increasing bus loading capacity
- Integrating diverse communication devices for industrial control and monitoring
| Product type: | CAN bridge |
|---|---|
| Interface: | CAN, CAN FD |
| Protocol: | CAN 2.0 A/B, CAN FD |
| Ports: | 2 |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (photocoupler) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |

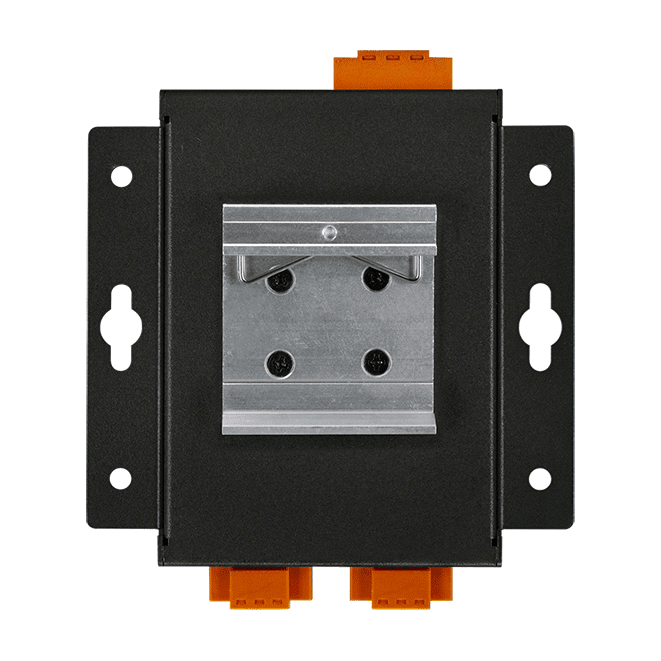

| Mounting: | Wall, DIN-rail |
| Housing: | Metal |
Specifications
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x USB status 2 x CAN status |
| USB | |
| Specification | USB 2.0 High Speed (480Mbps) |

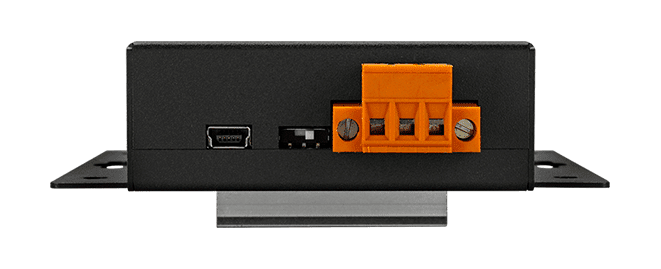

| Connector | 1 x USB (Mini-B) |
| Driver | Built-in Windows 7/8.1/10/11 |
| CAN | |
| Ports | 2 |
| Specification | ISO 11898-2, CAN 2.0 A/B and FD |
| Baud Rate | CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps (*Note1) Bit rate setting via utility tool |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Receive Buffer | 128 frames |
| Time Delay | [ 1Mbps (8-byte Data) ] ID-29bit => 160 us ; ID-11bit => 142 us [ 10Kbps (8-byte Data) ] ID-29bit => 13.8 ms ; ID-11bit => 12 ms |
| Data Flow | 10,000 FPS (each port) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 102 x 120 x 36 (W x L x H) |
| Installation | Wall Mount or DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
