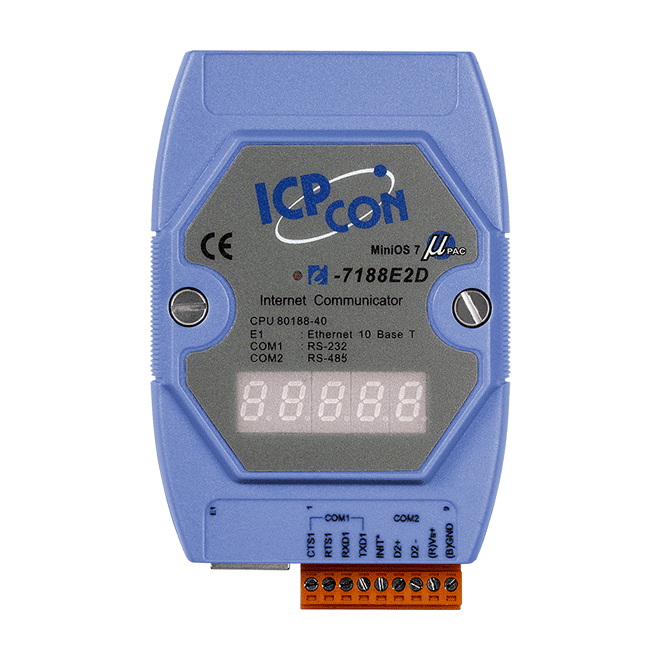

I-7188E2D Ethernet to 2x Serial Converter, RS-232/RS-485 Device Server
Programmable device server that links one RS-232 and one RS-485 serial device to Ethernet, using Virtual COM or raw TCP, with an LED status display.
- Brings one RS-232 and one RS-485 serial device onto Ethernet
- Virtual COM or raw TCP data transmission
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 with 80188 CPU at 40 MHz
- Watchdog timer for use in harsh environments
- Serial rates up to 115200 bps, 7 or 8 data bits, even, odd or no parity
191,00 € per piece
| 1–9 pcs | 191,00 € | |
|---|---|---|
| 10–30 pcs | 185,00 € | −3 % |
| 31+ pcs | 181,00 € | −5 % |
Informacje dot. produktu "I-7188E2D Ethernet to 2x Serial Converter, RS-232/RS-485 Device Server"
I-7188E2D is a programmable Ethernet device server for bringing a serial device onto a network without rewriting its software. It provides one RS-232 port and one RS-485 port, so a PC application can keep using a standard COM port through the Virtual COM mode, or a host can connect over a raw TCP socket.
The unit runs the built-in MiniOS7 from ICP DAS, which is suited to applications where a small, dependable embedded controller is needed at the serial edge of the network. A watchdog timer and reverse polarity protection on the power input support installations where reliability matters. The removable on-board terminal block simplifies field wiring.
The I-7188E2D suits factory, building and home automation projects that need serial equipment on Ethernet. The VxComm driver is provided for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Converter |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 2 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Specifications as published by the manufacturer. Subject to change.
