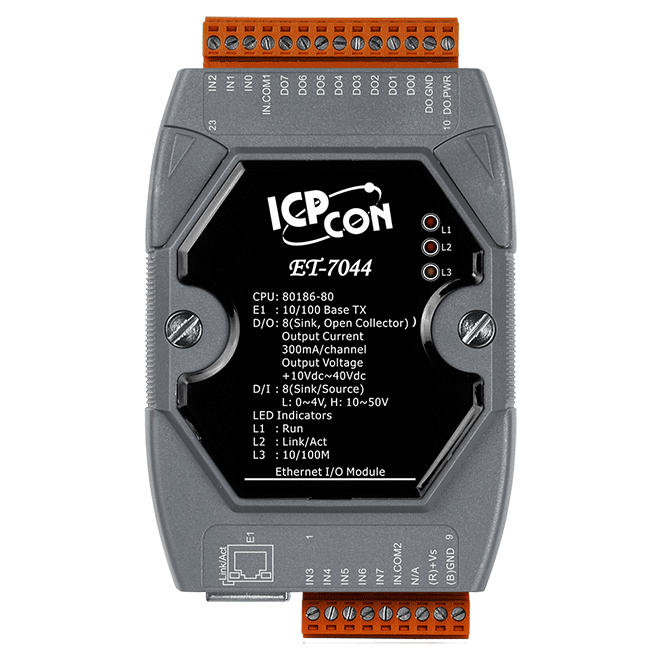

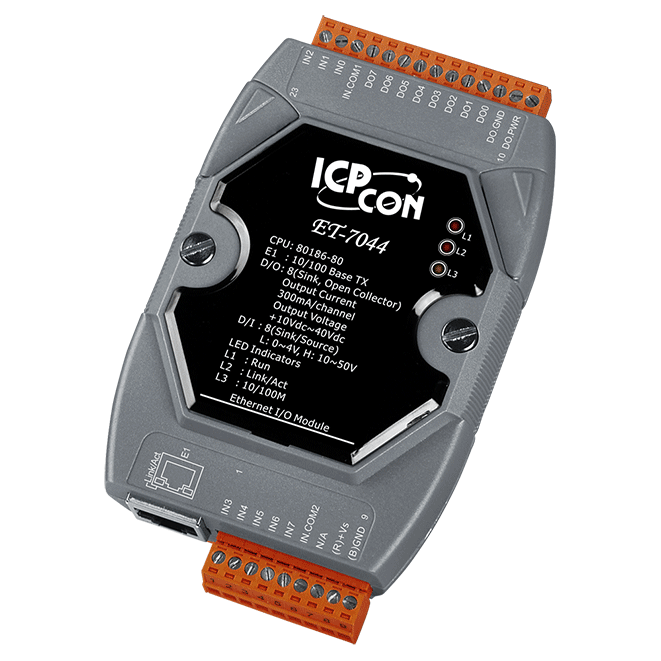

ET-7044 Ethernet I/O Module, 8-ch DI and 8-ch DO, Modbus TCP
Ethernet I/O module with 8 wet-contact digital inputs (selectable 32-bit counters) and 8 sink-type digital outputs, supporting Modbus TCP and Modbus UDP over a single RJ-45 port.
- 8 wet-contact digital input channels, sink/source, each selectable as a 32-bit counter
- 8 sink-type isolated open collector outputs, 300 mA per channel at 25 °C
- Programmable power-on and safe values for the digital outputs
- Modbus TCP and Modbus UDP support over 1 x RJ-45, 10/100 Base-TX
- Built-in web server with Web HMI and ID, password and IP filter access control
- Dual programmable watchdog (module and communication)
€ 181,00 per piece
| 1–9 pcs | € 181,00 | |
|---|---|---|
| 10–30 pcs | € 175,00 | −3 % |
| 31+ pcs | € 172,00 | −5 % |
Productinformatie "ET-7044 Ethernet I/O Module, 8-ch DI and 8-ch DO, Modbus TCP"
ET-7044 CR is a DIN-rail Ethernet I/O module that pairs eight wet-contact digital inputs with eight sink-type digital outputs. Each input can be used as a 32-bit counter, which suits pulse counting and event tracking on machines, building services and test equipment. Each output channel can switch a 300 mA load at 25 °C, so it can drive a power relay module directly.
The module communicates over Modbus TCP and Modbus UDP through a 10/100 Base-TX RJ-45 port. A built-in web server with Web HMI allows configuration and monitoring from a browser, and access is controlled by ID, password and IP filter. Dual programmable watchdogs cover the module and the communication link, and the digital outputs have programmable power-on and safe values for defined behaviour during start-up or fault conditions.
Electrical isolation is rated at 1500 VDC for the Ethernet side and 2500 VDC for the I/O side. The digital inputs and outputs are not isolated from each other channel to channel. The module is powered from a +10 ~ +30 VDC terminal block with reverse polarity protection, and it operates from -25 ~ +75 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 1 |
| Isolation: | 2500 VDC (I/O) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 500 Hz |
| Min. Pulse Width | 1 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 ~ +40 VDC |
| Load Current | 300 mA/channel at 25°C Direct Drive Power Relay Module |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.5 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
