iP-8441 Ethernet PAC with MiniOS7, 80186-80 CPU and 4 Slots
iP-8441 CR is a 4-slot Ethernet programmable automation controller running MiniOS7, supporting I-8K and I-87K I/O modules, four serial ports and dual 10/100 Base-TX Ethernet.
- 80186-compatible, 80 MHz CPU running the MiniOS7 embedded operating system, which boots in 0.4 ~ 0.8 seconds
- Four backplane slots for I-8K and I-87K series I/O modules
- Dual 10/100 Base-TX Ethernet ports and four serial ports (RS-232/RS-485)
- C language toolkit with TCP/IP and Modbus libraries and demo programs
- Storage of 512 KB flash, 16 KB EEPROM, 768 KB SRAM and microSD up to 32 GB
- Redundant power inputs, +10 ~ 30 VDC with 1 kV isolation
545,00 € per piece
| 1–9 pcs | 545,00 € | |
|---|---|---|
| 10–30 pcs | 529,00 € | −3 % |
| 31+ pcs | 518,00 € | −5 % |
Prekės informacija "iP-8441 Ethernet PAC with MiniOS7, 80186-80 CPU and 4 Slots"

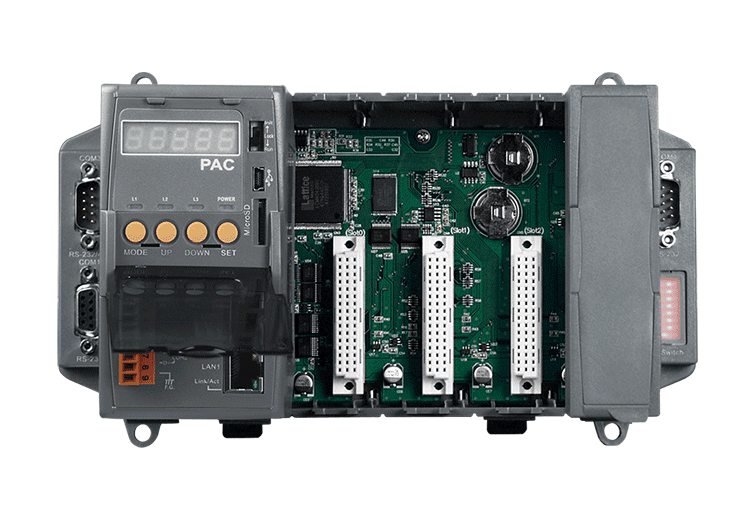

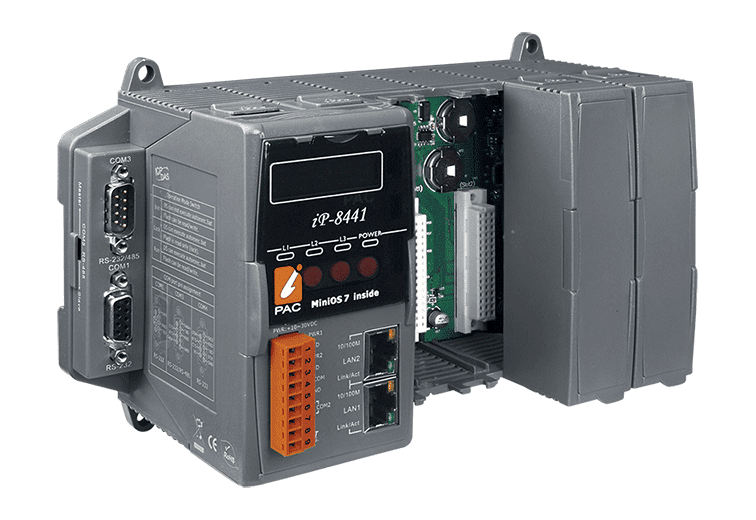

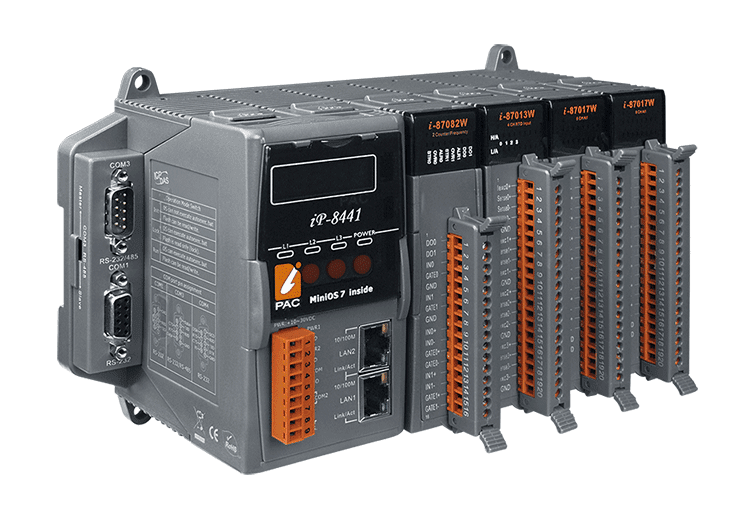

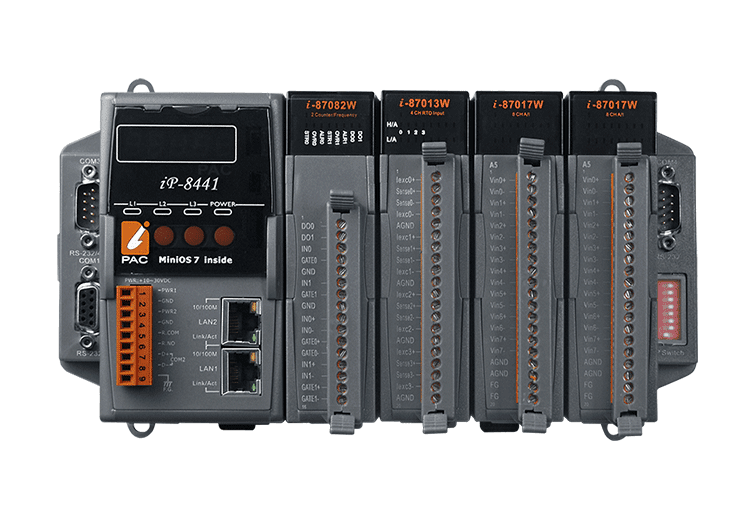

iP-8441 CR is an embedded Ethernet PAC built around an 80186-compatible, 80 MHz CPU and the DOS-like MiniOS7 operating system. Its backplane takes four I-8K or I-87K series I/O modules, so digital, analogue, counter/frequency and motion modules can be combined in one controller for remote data acquisition and control.
Connectivity is covered by two RJ-45 10/100 Base-TX Ethernet ports and four serial ports, three of which are RS-232 or RS-485 and one RS-232-only. A C language development toolkit with TCP/IP and Modbus libraries, plus demo programs, helps shorten the time needed to build network applications. Storage includes 512 KB flash, 16 KB EEPROM and a microSD slot supporting up to 32 GB.
The controller accepts redundant +10 ~ 30 VDC power inputs with 1 kV isolation and operates from -25 ~ +75 °C, making it suited to monitoring, measurement and control in harsh environments. The CR ordering suffix denotes the RoHS-compliant version.
Applications
- Industrial monitoring, measurement and control
- Remote data acquisition and control
- Environmental monitoring
- Power management
- Factory automation
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485 |
| Ports: | 2 Ethernet, 4 serial |
| Isolation: | 1 kV |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 768 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | 1 x microSD card slot, supports up to 32 GB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Power, 3 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 4 |
| HMI | |
| Buzzer | Yes |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 6.7 W |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
