USB-2051 USB I/O Module, 16-ch Isolated Digital Input with 32-bit Counters
16-channel isolated USB digital input module with 32-bit counters, dry or wet contact support and plug-and-play operation. Bus powered and supplied with a 1.5M USB cable.
- 16 isolated digital input channels with dry or wet contact selectable via wire connections
- All channels usable as 32-bit counters, with a maximum input frequency of 500 Hz
- USB 2.0 full-speed (12 Mbps) interface, bus powered with no external power supply
- Plug-and-play operation without driver installation; lockable USB cable included
- Hardware watchdog (1.6 second) and programmable software watchdog for continuous operation
- API library for VB, C++, C#.NET, VB.NET and LabVIEW, with demos and source code for Windows and Linux
133,00 € per piece
| 1–9 pcs | 133,00 € | |
|---|---|---|
| 10–30 pcs | 129,00 € | −3 % |
| 31+ pcs | 126,00 € | −5 % |
Prekės informacija "USB-2051 USB I/O Module, 16-ch Isolated Digital Input with 32-bit Counters"

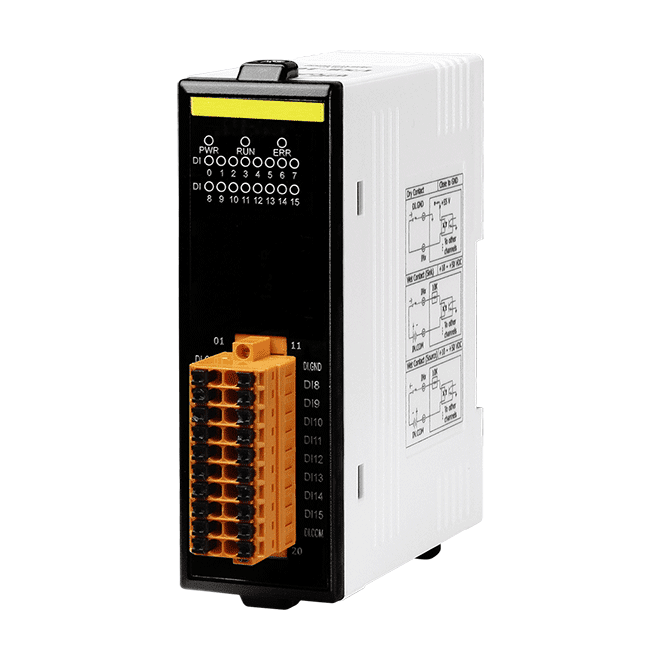

The USB-2051 CR adds 16 isolated digital inputs to a PC over a full-speed USB 2.0 connection. It needs no external supply, as it draws its power from the USB bus, and it works without a driver installation, so engineers can connect it and start reading inputs quickly.

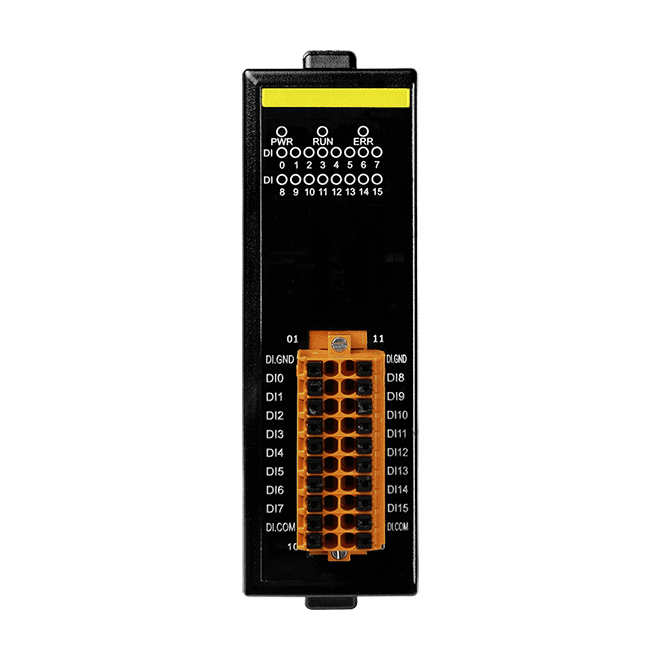

Each input can be wired for either dry contact or wet contact signals, and the sink or source behaviour is selected through the wiring. Every channel can also operate as a 32-bit counter, which suits pulse counting and event tallying. The 16 status LEDs show the state of each input, and a hardware and programmable software watchdog with configurable power-on and safe values helps the module keep running in demanding environments.
For application development, an API library and demo code are available for Windows and Linux, supporting VB, C++, C#.NET, VB.NET and LabVIEW. A utility tool is provided for configuration and quick I/O testing. The order includes a 1.5M USB cable (CA-USB15), and the cable can be locked in place.
Applications
- Building automation
- Machine automation
- Factory automation
- Testing equipment
| Product type: | USB I/O Module |
|---|---|
| Interface: | USB 2.0 |
| Digital inputs: | 16 |
| Isolation: | Isolated |
| Power input: | USB bus powered |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
| Status | 3 x Power and Communication 16 x Digital Input |
| Digital Input/Counter | |
| Channels | 16 |
| Type | Dry Contact, Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC Max. |
| Max. Counts | 32-bit |
| Frequency | 500 Hz |
| Min. Pulse Width | 1 ms |
| Effective Distance | 500 meters Max. |
| Input Impedance | 10 KΩ |
| Overvoltage Protection | 70 VDC |
| USB | |
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
| Consumption | 1.2 W |
| Mechanical | |
| Dimensions (mm) | 33 x 110 x 96 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
