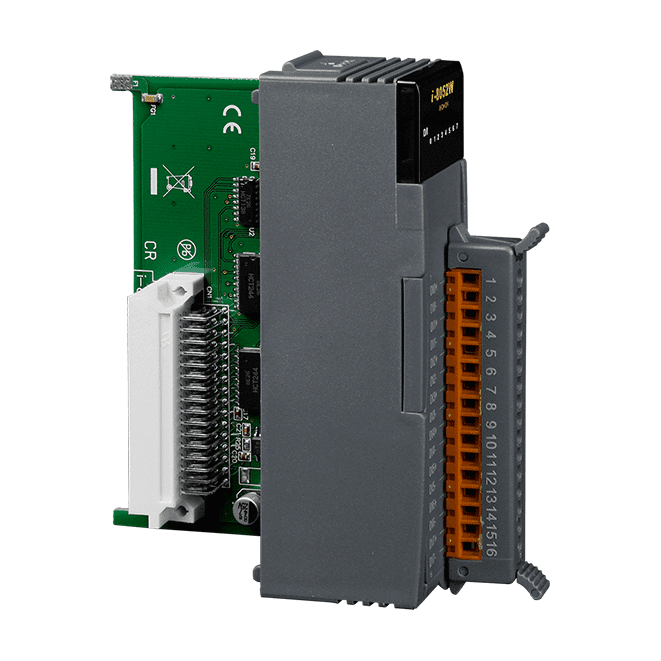

I-8052W-G 8-ch Isolated Digital Input Module, 10~30 VDC Wet Contact
8-channel isolated wet-contact digital input module for 10~30 VDC signals, with 2 kV channel-to-channel isolation and sink- or source-type input selected by wiring.
- 8 fully independent differential digital input channels
- 2 kV channel-to-channel photocoupler isolation; 5000 VDC intra-module isolation
- Sink- or source-type input selected via wire connections
- Wet-contact inputs: ON at +10 ~ +30 VDC, OFF at +4 VDC max.
- Input impedance 3 kΩ, 0.25 W
- 8 channel LED indicators plus 1 power and communication LED
82,00 € per piece
| 1–9 pcs | 82,00 € | |
|---|---|---|
| 10–30 pcs | 79,00 € | −4 % |
| 31+ pcs | 78,00 € | −5 % |
Prekės informacija "I-8052W-G 8-ch Isolated Digital Input Module, 10~30 VDC Wet Contact"
I-8052W-G CR is an 8-channel digital input module from the I-8K/I-87K Series (High Profile). Each of its eight differential inputs is photocoupler isolated, with 2 kV channel-to-channel isolation, so field signals are kept electrically separate from one another and from the logic side.
The inputs accept wet-contact signals with an ON level of +10 ~ +30 VDC and an OFF level of +4 VDC maximum. Sink- or source-type operation is chosen through the wiring, which lets one module suit either wiring convention in a control cabinet. A status LED for each channel, plus a power and communication LED, makes it straightforward to check input states during commissioning and fault finding.
The module is rated for operation from -25 ~ +75 °C and storage from -30 ~ +85 °C, with 5 ~ 95 % RH non-condensing humidity. Its 30 x 102 x 115 mm footprint and 0.3 W maximum consumption suit compact automation racks where space and power budget are tight.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 8 |
| Isolation: | 2 kV channel-to-channel |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 5000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 8 x I/O |
| Digital Input | |
| Channels | 8 Differential |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +30 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Input Impedance | 3 kΩ, 0.25W |
| Power | |
| Consumption | 0.3 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
