I-8051W-G 16-ch Non-isolated Dry Contact DI Module, 16 LED Indicators
16-channel non-isolated digital input module for dry contact signals, with ±4 kV ESD protection on every terminal and a status LED per channel for monitoring.
- 16 digital input channels for dry contact wiring
- All channels non-isolated
- ±4 kV contact ESD protection on each terminal
- 16 I/O LED indicators plus a power and communication LED
- ON when connected to GND, OFF when open
- Operating temperature -25 to +75 °C
85,00 € per piece
| 1–9 pcs | 85,00 € | |
|---|---|---|
| 10–30 pcs | 83,00 € | −2 % |
| 31+ pcs | 81,00 € | −5 % |
Prekės informacija "I-8051W-G 16-ch Non-isolated Dry Contact DI Module, 16 LED Indicators"

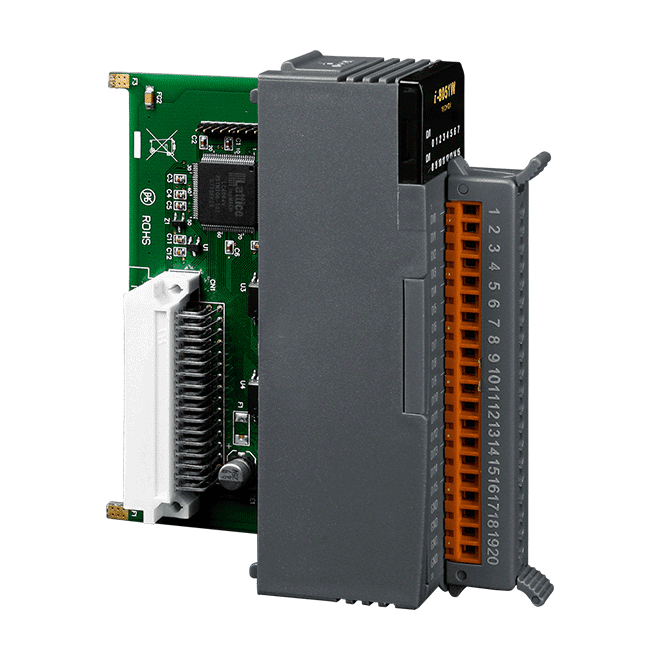

I-8051W-G CR is a 16-channel digital input module from the I-8K/I-87K High Profile PAC I/O series, designed to read dry contact signals. Each channel reads a closed contact to GND as ON and an open contact as OFF, which suits switches, relays and push buttons wired to the module.
Each terminal has ±4 kV contact ESD protection, which helps the inputs withstand electrostatic discharge during installation and service. Sixteen LED indicators show the state of the digital input channels, so faults and signal changes can be checked at a glance on site.
The module draws 1.1 W maximum and operates from -25 to +75 °C, with storage from -30 to +85 °C and 5 to 95 % RH non-condensing humidity. It carries CE, UKCA, FCC, RoHS and WEEE marking.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 16 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 16, Non-isolated |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Connect to GND |
| OFF Voltage Level | Open |
| Effective Distance | 500 m Max. |
| Power | |
| Consumption | 1.1 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
