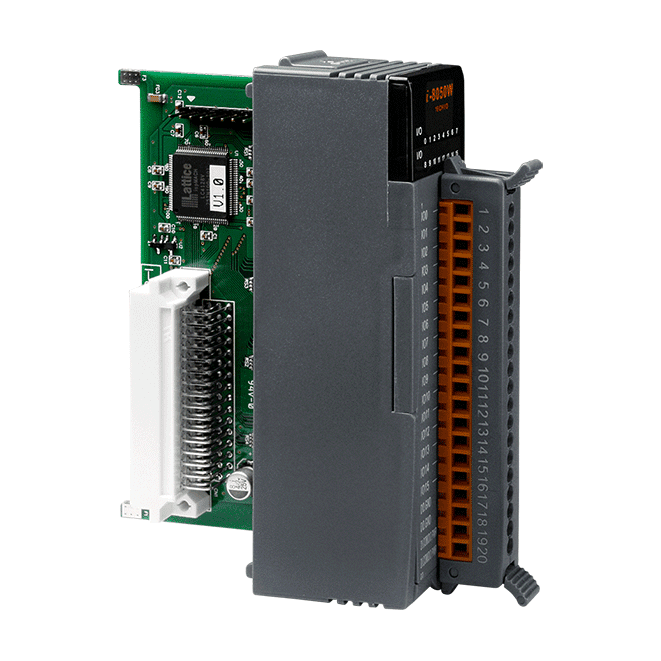

I-8050W-G 16-ch Universal Digital I/O Module, Programmable DI/DO
16-channel universal digital I/O module in which each channel is set by programming as a digital input or a sink-type output. Photocoupler isolation and 3750 VDC intramodule isolation.
- 16 universal digital channels, each configurable as a digital input or digital output by programming
- Photocoupler isolation, with 3750 VDC intramodule isolation
- Sink-type open-collector outputs rated 5 ~ 30 VDC and 100 mA per channel, with short-circuit protection
- Selectable power-on value and safe value for outputs
- Digital input ON level +10 ~ +30 VDC, OFF level +4 VDC max.
- ±4 kV ESD protection on each terminal
102,00 € per piece
| 1–9 pcs | 102,00 € | |
|---|---|---|
| 10–30 pcs | 99,00 € | −3 % |
| 31+ pcs | 97,00 € | −5 % |
Prekės informacija "I-8050W-G 16-ch Universal Digital I/O Module, Programmable DI/DO"
The I-8050W-G CR provides 16 universal digital channels, each of which can be programmed as either a digital input or a digital output. This makes it a flexible choice where the I/O mix may change or is not fixed at the design stage.
Every channel is photocoupler isolated. Inputs are sink-type with a +10 ~ +30 VDC ON level, and outputs are isolated open-collector sink drivers rated for a +5 ~ +30 VDC load at 100 mA per channel, with short-circuit protection. Power-on and safe values can be configured for the outputs.
- 16 channels, each programmable as input or output
- 3750 VDC intramodule isolation as standard
- ±4 kV ESD protection on each terminal
- CE, FCC, RoHS and WEEE listed
Applications
- Interfacing sink-type field switches and sensors to a controller
- Switching loads of up to 100 mA per channel with open-collector outputs in industrial control panels
| Product type: | Universal digital I/O module |
|---|---|
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 0 ~ 16, by programming |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +10 ~ +30 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Input Impedance | 3 kΩ, 0.25W |
| Digital Output | |
| Channels | 0 ~ 16, by programming |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 1 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
