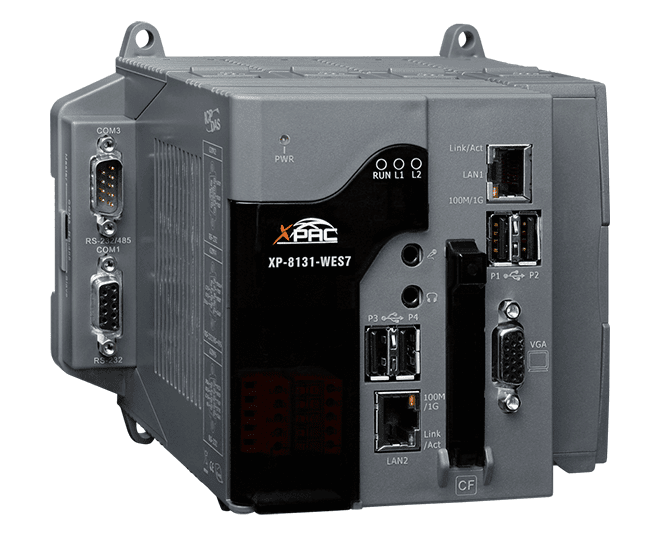

XP-8131-WES7 1-Slot Windows PAC with x86 CPU and WES7
1-slot Windows Embedded Standard 7 PAC combining a 1 GHz dual-core x86 CPU, VGA display and I-8K/I-87K I/O expansion in one unit for HMI, data acquisition and control.
- Windows Embedded Standard 7 SP1 x86 (32-bit) operating system
- 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash storage
- One local slot for I-8K or I-87K series I/O modules
- Dual 10/100/1000 Base-TX Ethernet ports
- VGA output with resolutions up to 1920 x 1080
- Four COM ports: two RS-232, one RS-485 (3000 VDC isolated) and one RS-232/RS-485
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Non più disponibile
Info sui prodotti "XP-8131-WES7 1-Slot Windows PAC with x86 CPU and WES7"
The XP-8131-WES7 CR is a 1-slot Windows PAC for engineers who need a single controller that handles computing, operator display and local I/O. It runs Windows Embedded Standard 7 SP1 (32-bit) on a 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM, so it suits HMI, data acquisition and control tasks in one device.
Connectivity covers dual 10/100/1000 Base-TX Ethernet, VGA output, four USB 2.0 ports and four serial COM ports, including RS-485 with 3000 VDC isolation. The local slot accepts I-8K or I-87K series I/O modules, and remote expansion is possible through Ethernet and RS-485 I/O modules.
Because WES7 uses the same Win32 API as Windows 7, many popular desktop applications can be run on the unit. The redundant power inputs with an alarm relay and dual watchdog timer support reliable operation in demanding installations.
Applications
- HMI and operator interface
- Data acquisition
- Industrial control
- Local and remote I/O integration
| Product type: | Windows PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 Ethernet, 4 USB 2.0, 4 COM |
| Isolation: | 3000 VDC (RS-485), 1 kV (power) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| Software | |
|---|---|
| OS | Windows Embedded Standard 7 SP1 x86 (32-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | x86 CPU, 1 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2GB DDR3 SDRAM, 32 GB Flash |
| Storage | 1x CF card slot |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 1920 x 1080, 1024 x 768, 800 x 600 , 640 x 480 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 1 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Capacity | 25 W |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 16.6 W (0.69 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 169 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
