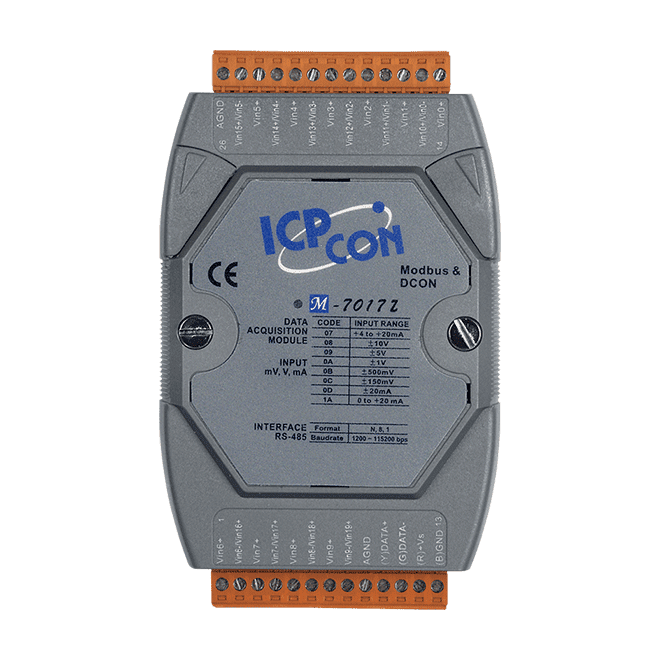

M-7017Z-G 10/20-ch Analog Input Module, High Voltage Protection, RS-485
RS-485 analog input module offering 10 differential or 20 single-ended channels, 240 Vrms overvoltage protection and Modbus RTU or DCON support.
- 10 differential or 20 single-ended analog inputs, software selectable
- Jumper-selectable voltage or current input with individual channel ranges
- 240 Vrms overvoltage protection and 50 mA overcurrent protection at 110 VDC
- Open wire detection for 4 ~ 20 mA inputs
- Normal (10 Hz) and fast (60 Hz) sampling modes
- Modbus RTU and DCON over RS-485, 1200 ~ 115200 bps
239,00 € per piece
| 1–9 pcs | 239,00 € | |
|---|---|---|
| 10–30 pcs | 231,00 € | −3 % |
| 31+ pcs | 227,00 € | −5 % |
Informacije o proizvodu "M-7017Z-G 10/20-ch Analog Input Module, High Voltage Protection, RS-485"
The M-7017Z-G CR is a 16-bit analog input module for RS-485 networks, accepting up to 10 differential or 20 single-ended channels. Each channel can be given its own input range, and voltage or current input is selected by jumper, so one module can serve a mixed set of field sensors and transmitters.
High input protection is the main reason to choose this variant. Each channel tolerates 240 Vrms overvoltage and is protected against 50 mA overcurrent at 110 VDC, with ±200 VDC common-voltage protection, 4 kV ESD protection and 3000 VDC intra-module isolation. Open wire detection is available on 4 ~ 20 mA inputs, and the sampling rate can be switched between normal (10 Hz) and fast (60 Hz) modes.
The module communicates over RS-485 using Modbus RTU or DCON, configured in software, at 1200 ~ 115200 bps. The gray-cover version is listed as RoHS compliant, and its hardware specifications match those of the I-7017Z.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Analog inputs: | 10 differential / 20 single-ended |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 10 Differential or 20 Single-ended (Software Selectable, *Note 1) |
| Type | Voltage Current |
| Range | Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V Current: ±20 mA , 0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 60 Hz |
| Input Impedance | Voltage: 2 MΩ (Differential) Current: 125 Ω (Differential) |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA Only |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
