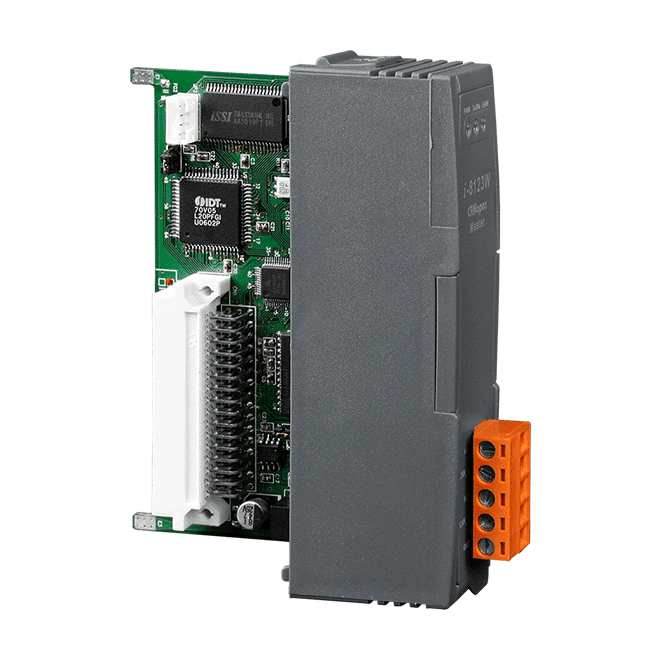

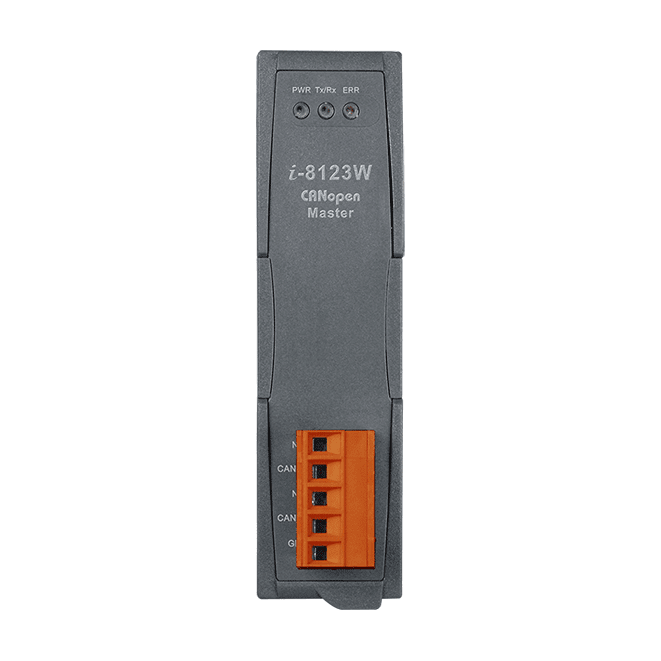

I-8123W-G CANopen Master Module, 1-Port, Parallel Bus Type
Single-port CANopen master module for ICP DAS WinPAC, ViewPAC and XPAC controllers, conforming to CiA 301 v4.02 with baud rates from 10 k to 1 M.
- CANopen master (NMT Master) conforming to CiA 301 v4.02, with SDO segmented protocol support
- Network scan function to discover all nodes on the same CANopen network
- Event-triggered, remote-requested, cyclic and acyclic SYNC of PDO modes, with dynamic PDO mapping
- EMCY, Node Guarding and Heartbeat event triggers, plus master listen mode
- Single CAN port at 10 k ~ 1 M baud with built-in 120Ω terminator
- 3000 VDC DC-to-DC and 2500 Vrms photo-coupler isolation
310,00 € per piece
| 1–9 pcs | 310,00 € | |
|---|---|---|
| 10–30 pcs | 301,00 € | −3 % |
| 31+ pcs | 295,00 € | −5 % |
Informacije o proizvodu "I-8123W-G CANopen Master Module, 1-Port, Parallel Bus Type"
The I-8123W-G CR adds a CANopen master port to compatible ICP DAS WinPAC, ViewPAC and XPAC controllers over the parallel bus. It is intended for engineers who need a CANopen master on an existing PAC without a separate gateway, and it communicates with slave devices using the CiA 301 v4.02 specification.
The module uses an NXP SJA1000T CAN controller with an 82C250/251-class transceiver, and provides a single CAN port on a 5-pin screw terminal connector with a built-in 120Ω terminating resistor. Scan, listen and event-monitoring functions help with commissioning and supervising a live network, while dynamic PDO mapping and several SYNC modes allow the process data exchange to be tuned to the application.
Electrical isolation is rated at 3000 VDC for DC-to-DC and 2500 Vrms for the photo-coupler. The module also supports the CANopen Motion Library, which follows CiA 402 and covers position, velocity, torque and synchronised control. Drivers are provided for WinPAC, ViewPAC, XPAC and XPAC-CE6, with SDK support for eVC++4.0, VC++, VB.net and C#.net.
Applications
- Industrial machinery
- Laboratory equipment and research
- Restaurant appliances
- Maritime
- Medical
- Specialty vehicles
| Product type: | CANopen master module |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Software | |
|---|---|
| Driver | WinPAC, ViewPAC, XPAC, XPAC-CE6 (The XPAC series PAC only support one I-8123W) |
| SDK | eVC++4.0, VC++, VB.net, C#.net |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02 |
| NMT | Master |
| Power | |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | 31 x 115 x 91 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
