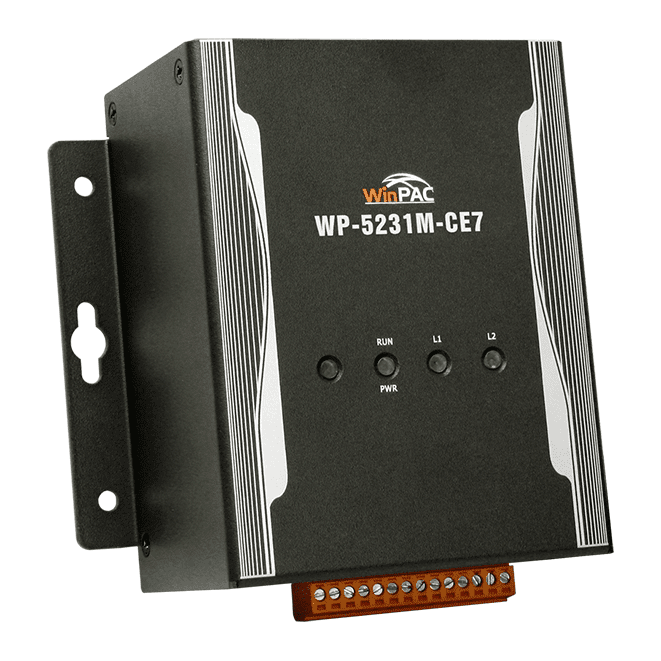

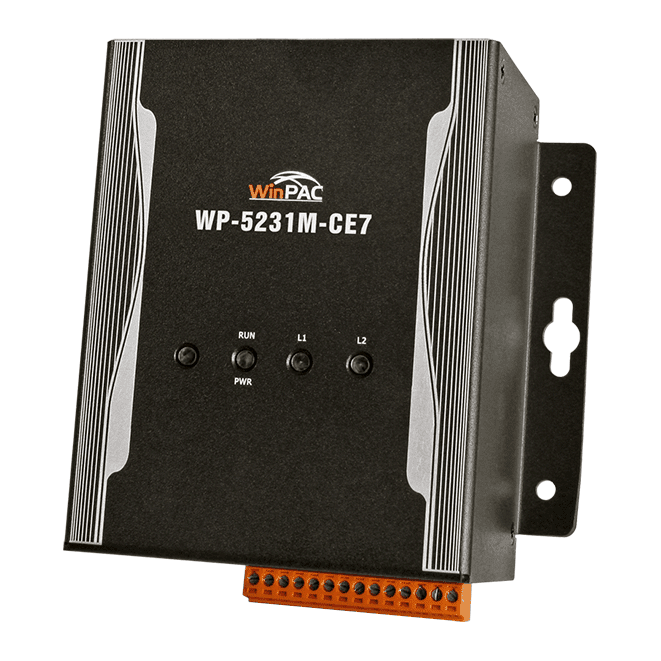

WP-5231M-CE7 WinCE 7.0 PAC, Cortex-A8 1 GHz, 1 I/O Expansion Bus
Windows CE 7.0 programmable automation controller with a 1 GHz Cortex-A8 CPU, 512 MB SDRAM, VGA output, four serial ports and an XV-board I/O expansion bus. Metal casing, -25 ~ +75 °C.
- Cortex-A8, 1.0 GHz CPU running Windows CE 7.0 with .Net Compact Framework 3.5 support
- 512 MB DDR3 SDRAM, 256 MB Flash, 64 KB FRAM and optional microSD card up to 32 GB

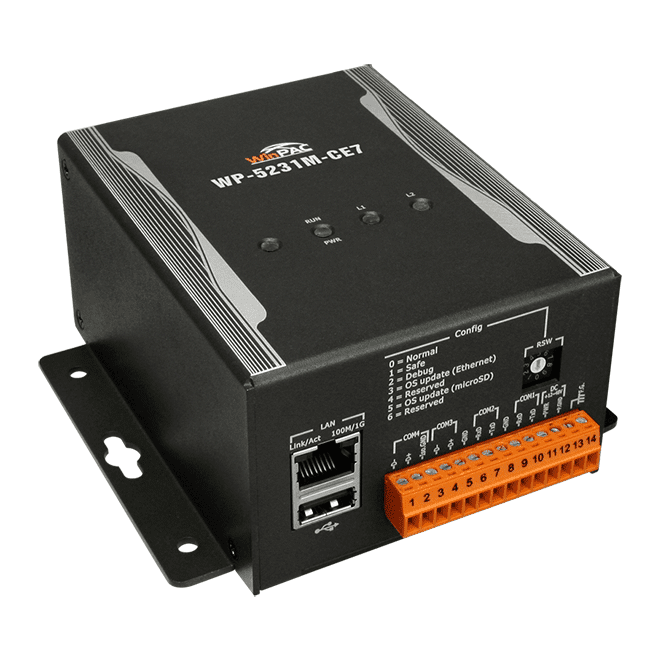

- 1 x 10/100/1000BASE-T Ethernet port, 2 x RS-232 and 2 x RS-485 serial ports, 1 x USB 2.0 host
- One RS-485 port is 2500 VDC isolated

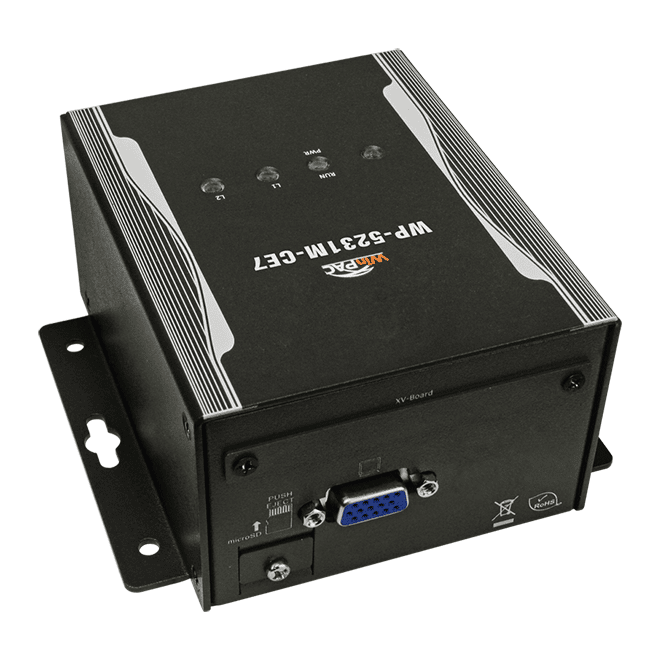

- Built-in VGA port supporting 640 × 480 up to 1024 × 768

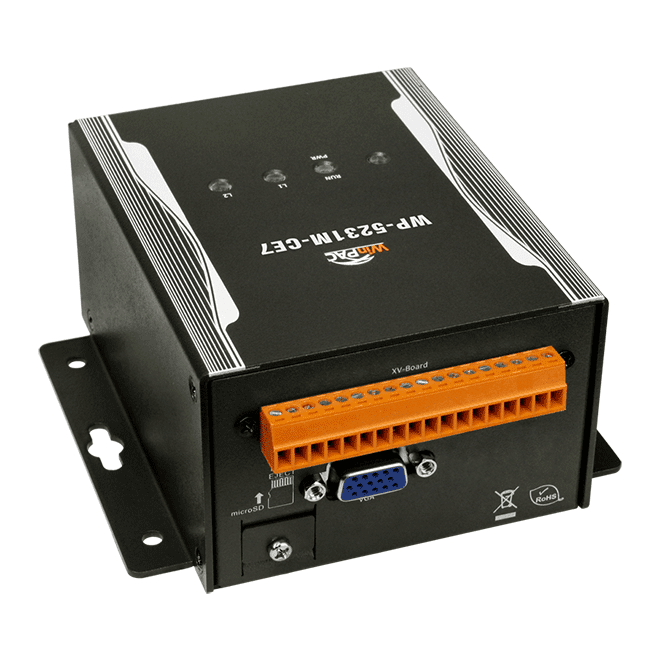

- I/O expansion bus interface for the XV-board
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Ei enää saatavilla
Tuotetiedot "WP-5231M-CE7 WinCE 7.0 PAC, Cortex-A8 1 GHz, 1 I/O Expansion Bus"
WP-5231M-CE7 is a Windows CE 7.0 PAC built around a 1 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and hard real-time capability. It suits engineers who want a Windows-based controller with a built-in VGA display, several serial links and an expansion path for I/O through an XV-board.
Storage comprises 256 MB Flash, 64 KB FRAM for data retention and an optional microSD card of up to 32 GB. Development support includes .Net Compact Framework 3.5, DLLs for VC and Visual Studio .NET 2008, and built-in FTP and web servers with an embedded SQL Server.
Connectivity covers one 10/100/1000BASE-T Ethernet port, two RS-232 and two RS-485 serial ports (one RS-485 port is 2500 VDC isolated), and a USB 2.0 host port. The unit runs from +12 ~ 48 VDC over -25 ~ +75 °C and has a metal casing rated IP30, for DIN-rail or wall mounting.
Applications
- Industrial automation controllers that need a local VGA display
- Data logging and storage using on-board Flash and microSD
- Windows CE application development with .Net and Visual Studio DLLs
- Serial device integration over RS-232 and RS-485
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0, VGA |
| Ports: | 6 |
| Isolation: | 2500 VDC (one RS-485 port) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| OS | Windows CE 7.0 Professional |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System/Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Ingress Protection Rating | IP30 |
| Weight | 365 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
