I-8041AW-G 32-ch Isolated Source (PNP) Digital Output Module, 5~30 VDC
32-channel isolated source-type (PNP) digital output module for 5~30 VDC loads, with 100 mA per channel, short circuit protection and 3750 VDC intra-module isolation.
- 32 isolated open collector digital output channels, source (PNP) type
- Load voltage +5 ~ +30 VDC with 100 mA per channel
- Short circuit protection on source-type outputs
- 32 I/O LEDs plus a power and communication LED for status monitoring
- ±4 kV ESD contact protection on each terminal
- 3750 VDC intra-module isolation as standard
152,00 € per piece
| 1–9 pcs | 152,00 € | |
|---|---|---|
| 10–30 pcs | 147,00 € | −3 % |
| 31+ pcs | 144,00 € | −5 % |
Tuotetiedot "I-8041AW-G 32-ch Isolated Source (PNP) Digital Output Module, 5~30 VDC"

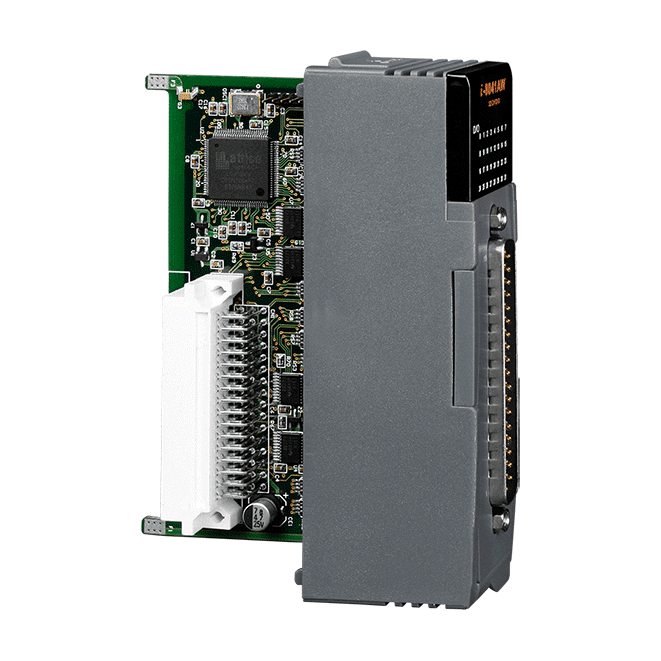

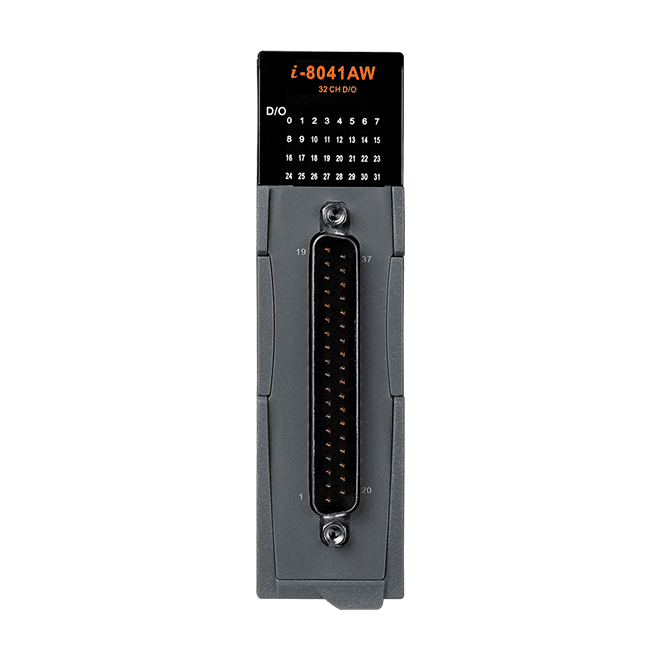

The I-8041AW-G CR is a 32-channel digital output module from the I-8K/I-87K High Profile series. Each channel is photocoupler-isolated and works as a source-type (PNP) open collector output, rated for loads from +5 to +30 VDC at up to 100 mA per channel. Short circuit protection is provided on the outputs.
Each output has its own LED, and a separate LED shows power and communication status, so channel activity can be checked at a glance during commissioning and fault finding. ESD protection of ±4 kV contact is provided on each terminal, and 3750 VDC intra-module isolation is included as standard.
This CR ordering code includes the CA-4002F DB37 female connector with plastic cover. The module can also be paired with the DN-37-381-A CR daughterboard for easier wiring, or the DN-8K32R daughterboard where relay output is required.
Applications
- Digital output control within I-8K/I-87K series PAC I/O systems
| Product type: | Digital output module |
|---|---|
| Digital outputs: | 32 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 32 x I/O |
| Digital Output | |
| Channels | 32 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 1.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 85 x 114 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
