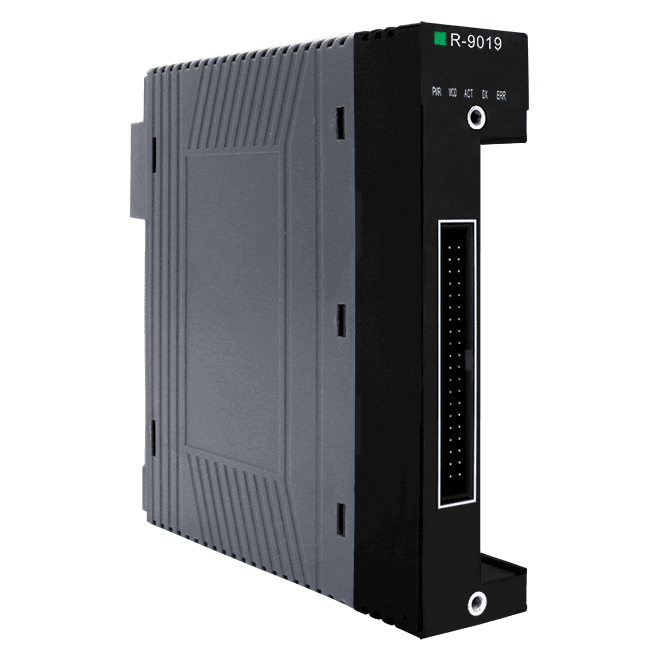

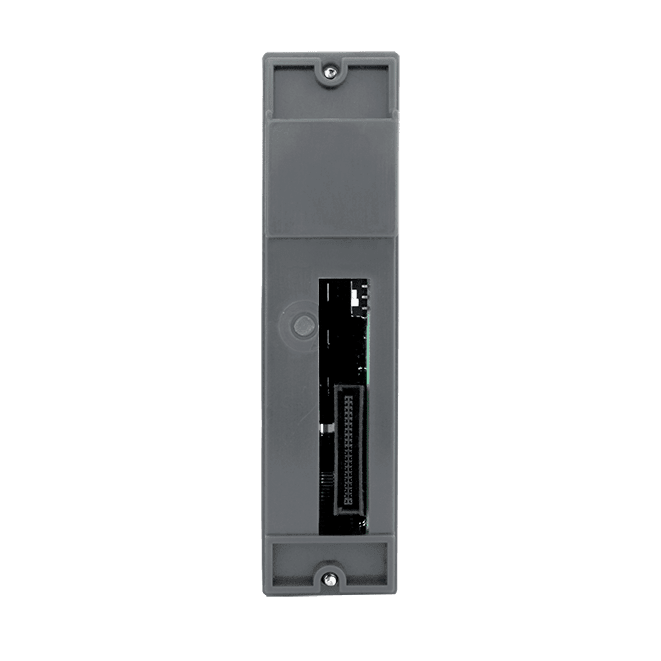

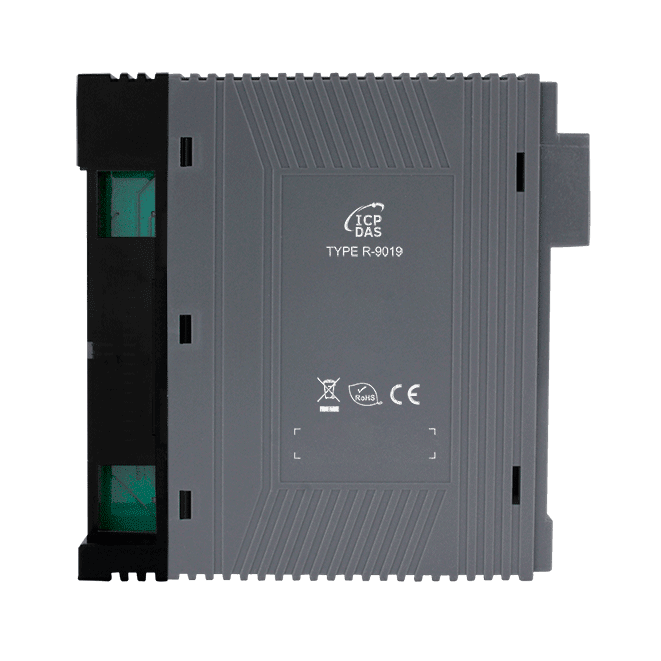

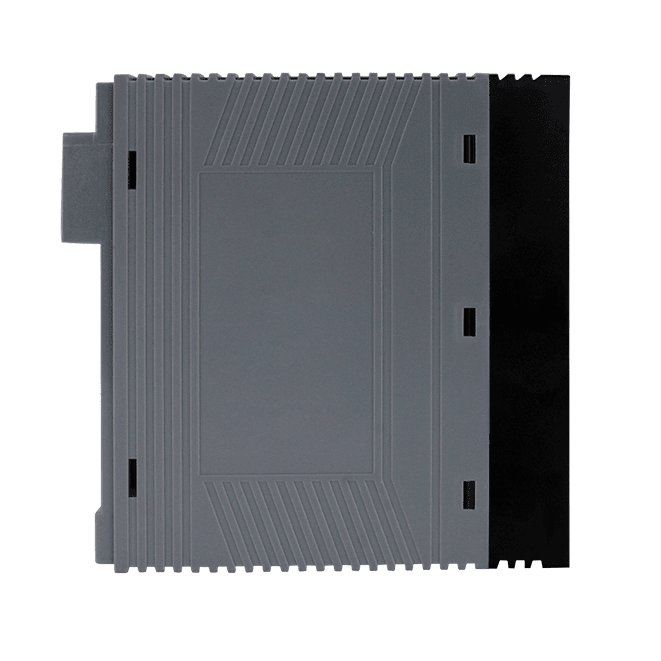

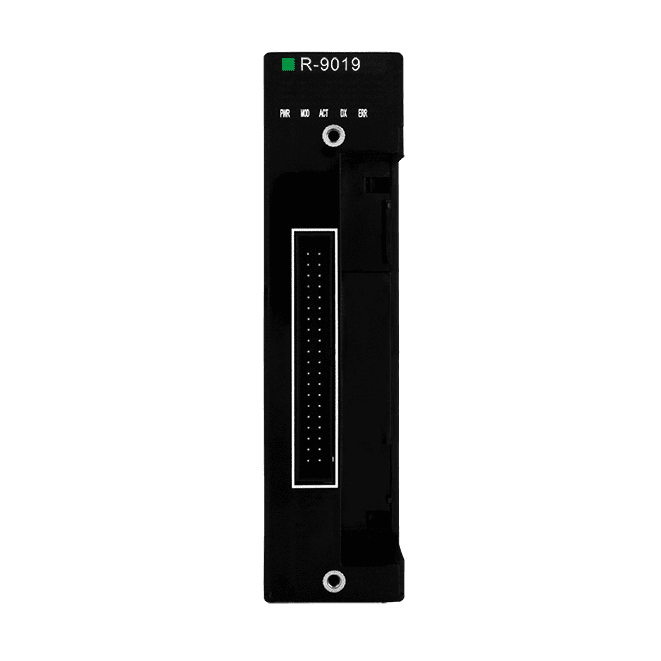

R-9019 Redundant Thermocouple Input Module, 16-ch, 16-bit
16-channel, 16-bit thermocouple input module for the RIO-98x0 redundancy I/O system, supporting J, K, T, E, R, S, B, N and C sensors with user-defined range scaling.
- 16 thermocouple input channels with a 16-bit A/D converter
- Supports J, K, T, E, R, S, B, N and C sensor types
- User-defined measurement range scaling per channel
- Channel and termination board disconnection detection
- Redundant switching time below 1 ms for RIO-98x0 systems
- ±0.05% FSR accuracy with 3000 VDC isolation between power and backplane bus
1.367,00 € per piece
| 1–9 pcs | 1.367,00 € | |
|---|---|---|
| 10–30 pcs | 1.326,00 € | −3 % |
| 31+ pcs | 1.298,00 € | −5 % |
Πληροφορίες για το προϊόν "R-9019 Redundant Thermocouple Input Module, 16-ch, 16-bit"
The R-9019 CR brings 16 thermocouple input channels into an RIO-98x0 redundant I/O system. Each channel uses a 16-bit A/D converter and can be scaled to a user-defined measurement range, so one module can serve a mix of sensor types and temperature spans across a plant.
Channel and termination board disconnection detection help engineers catch faulty wiring early, while per-channel LEDs flag high and low alarm conditions and open circuits. The module connects to field signals through an RDB-S02 or RDB-D02 terminal board, which is also monitored for disconnection. Redundant switching completes in under 1 ms, so the system can keep running if a single I/O module fails.
Choose the R-9019 CR where accurate thermocouple readings and wiring supervision matter, such as building, factory and machine automation, remote diagnosis and test rigs. Its 3000 VDC isolation between the power supply and the backplane bus helps it resist electrical noise. The module operates from -25 °C to +70 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Thermocouple input module |
|---|---|
| Analog inputs: | 16 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +70 °C |
Specifications
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 PWR, 1 MOD, 1 ACT, 1 DX, 1 ERR LED 0~15 for CH High/Low Alarm LED 16~31 for CH Break Line |
| Analog Input | |
| Channels | 16 |
| Type | Thermocouple |
| Sensor Type | Type J, K, T, E, R, S, B, N, C |
| Range | J: -210 ~ +1200 ℃ K: -270 ~ +1372 ℃ T: -270 ~ +400 ℃ E: -270 ~ +1000 ℃ R: -50 ~ +1765 ℃ S: -50 ~ +1765 ℃ B: 0 ~ +1820 ℃ N: -270 ~ +1300 ℃ C: 0 ~ +2320 ℃ |
| Resolution | 16 bit |
| Accuracy | ±0.05% FSR |
| Sampling Rate | 1 Samples/sec (Total) |
| Input Impedance | 20M Ω |
| Common Mode Rejection | 106 dB |
| Normal Mode Rejection | 100 dB |
| Overcurrent Protection | Yes |
| Open Wire Detection | Yes |
| Zero Drift | ±20 μV/℃ |
| Span Drift | ±25 μV/℃ |
| Isolation | 3000 VDC |
| I/O Expansion | |
| I/O Type | RDB-S02 / RDB-D02 |
| Power | |
| Consumption | 2.2 W |
| Mechanical | |
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
