LP-9221 2-Slot Linux PAC, Cortex-A8 1 GHz, I-9K/I-97K Expansion
2-slot Linux-based PAC with a 1 GHz Cortex-A8 CPU and I-9K/I-97K expansion slots, combining dual Ethernet, four isolated serial ports and embedded server functions for programmable control.
- 1.0 GHz Cortex-A8 CPU running Linux kernel 3.2.14
- Two slots for I-9K and I-97K series I/O modules
- Two 10/100/1000 Base-TX Ethernet ports
- Four serial ports (RS-232/485), each isolated at 3000 VDC
- Embedded web, FTP, Telnet and SSH servers
- Dual watchdog timer and redundant power inputs
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Δεν είναι πλέον διαθέσιμο
Πληροφορίες για το προϊόν "LP-9221 2-Slot Linux PAC, Cortex-A8 1 GHz, I-9K/I-97K Expansion"

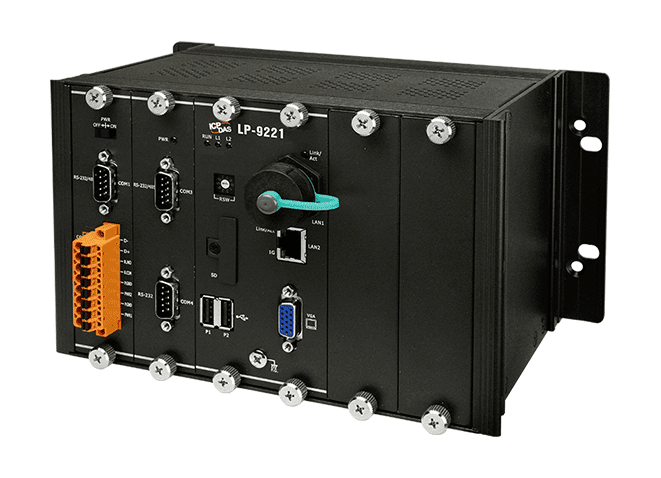

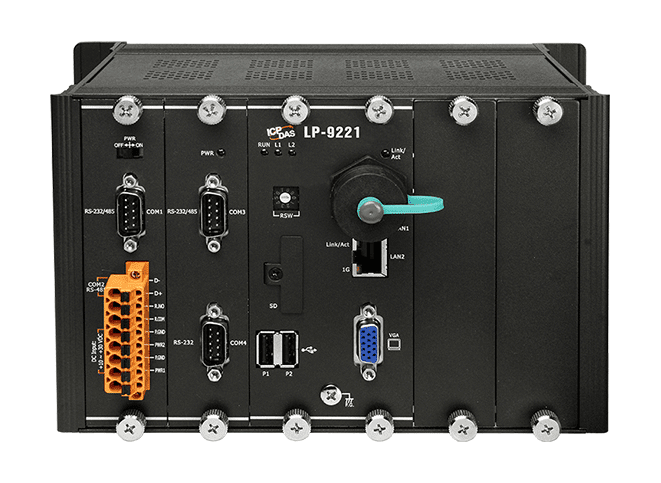

LP-9221 CR is a Linux-based programmable automation controller built around a 1.0 GHz Cortex-A8 CPU running Linux kernel 3.2.14. It suits engineers who need a standalone controller that runs their own GNU C applications while connecting to local I/O through two expansion slots.
Two expansion slots accept high-performance I-9K (parallel-type) and I-97K (serial-type) I/O modules. The unit provides two 10/100/1000 Base-TX Ethernet ports, four serial ports configurable as RS-232 or RS-485, and two USB 2.0 host ports, with the serial ports isolated at 3000 VDC. Embedded web, FTP, Telnet and SSH servers are included.
Reliability features include dual watchdog timers, redundant power inputs with a relay output for alarm signalling, and a 64-bit hardware serial number for software copy protection. The metal case is rated for -25 ~ +75 °C operation and can be mounted on a DIN rail or a wall.
Applications
- Modbus communication
- CANopen and CAN bus networks
- DeviceNet connectivity
- Multi-serial device integration
- SNMP network monitoring
- Wireless links via 3G/4G cellular, WLAN, Bluetooth and Zigbee
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC, redundant |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | • MRAM 128 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | 2 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (Console, 3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 10.8 W (0.45 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 239 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
