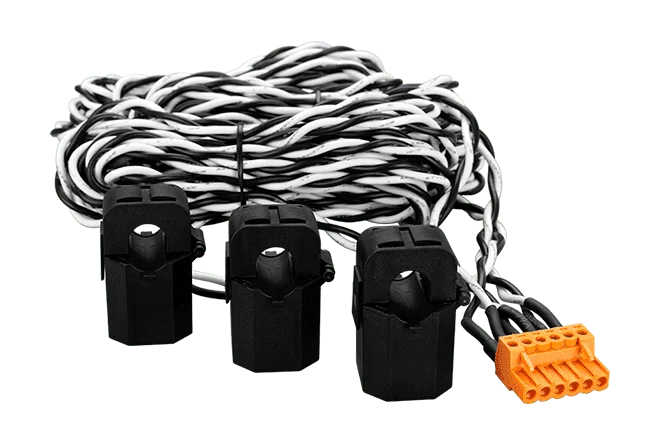

CA-SCT10P-60A-L040-3P Split-Core Current Transformer, 60A, 10 mm, 4 m Cable
Three split-core current transformers with 60A input, 10 mm aperture and 4 m leader cable, for use with the PM-2133DP, PM-3133P and PM-4324(A)P power meters.
- 60A maximum input current with 0.05A minimum
- 10 mm split-core aperture for retrofit installation
- 1% accuracy with a 12:1 CT ratio
- Supplied as a set of three CTs with 4 m leader cables
- Designed for PM-2133DP, PM-3133P and PM-4324(A)P power meters
- RoHS and WEEE compliant
63,00 € per piece
| 1-9 pcs | 63,00 € | |
|---|---|---|
| 10-30 pcs | 61,00 € | −3 % |
| 31+ pcs | 60,00 € | −5 % |
Πληροφορίες για το προϊόν "CA-SCT10P-60A-L040-3P Split-Core Current Transformer, 60A, 10 mm, 4 m Cable"
The CA-SCT10P-60A-L040-3P is a split-core current transformer for energy monitoring. Its 10 mm aperture clamps around an existing conductor without disconnecting the circuit, which suits retrofit metering in distribution panels.
This ordering code is supplied as a set of three CTs, each with a 4 m leader cable, and is rated for up to 60A with a 12:1 CT ratio and 1% accuracy. It is designed for the PM-2133DP, PM-3133P and PM-4324(A)P power meters.
Choose this variant when your measured current falls in the 0.05A to 60A range and a 10 mm conductor aperture is sufficient. Larger conductors or higher currents need one of the other CA-SCT series ratings.
Applications
- Energy management and power metering
- Current monitoring in distribution panels
- Retrofit submetering on existing conductors
| Product type: | Split-core current transformer |
|---|
