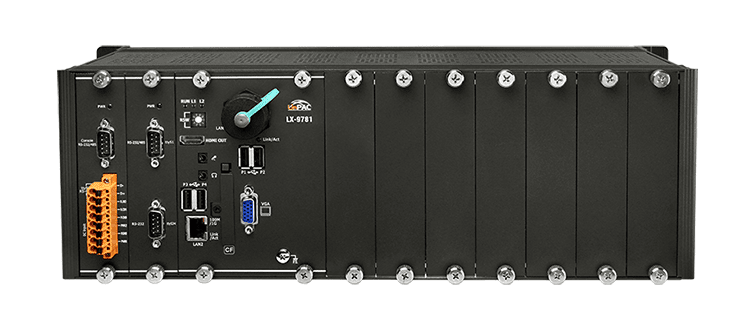

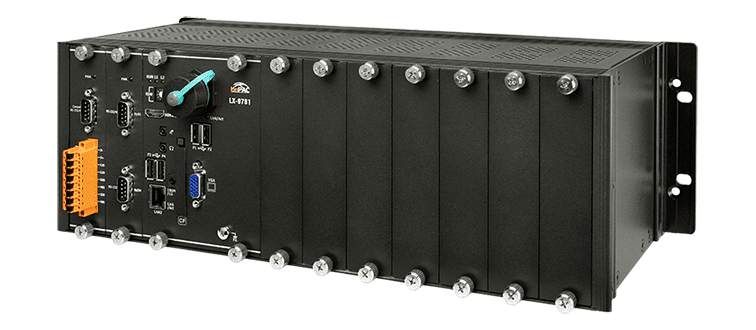

LX-9781 7-Slot Linux PAC with E3845 CPU, Metal Case
Linux-based PAC with a 1.91 GHz E3845 quad-core CPU, seven slots for I-9K and I-97K I/O modules and dual 10/100/1000M Ethernet, for combined HMI, data acquisition and control.
- E3845 (1.91 GHz) quad-core CPU with 4 GB DDR3 SDRAM
- Linux kernel 4.14.12 with LinPAC SDK (GCC based toolchain and LinPAC libraries)
- Seven I/O expansion slots for I-9K and I-97K series modules
- 2 x 10/100/1000M Ethernet ports and RS-232/RS-485 serial ports with 3000 VDC isolation
- VGA and HDMI dual display support
- Built-in web, FTP, Telnet and SSH servers
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Již není k dispozici
Informace o výrobku "LX-9781 7-Slot Linux PAC with E3845 CPU, Metal Case"
The LX-9781 CR combines computing, I/O and operator interface in one metal-cased unit. Its E3845 (1.91 GHz) CPU runs Linux kernel 4.14.12, so an engineer can host HMI, data acquisition and control logic in a single PAC rather than splitting them across separate devices.
Seven local slots accept I-9K and I-97K series I/O modules. Remote expansion is possible through the Ethernet and RS-485 I/O modules listed in the ICP DAS range, and the unit offers VGA and HDMI dual display, USB host ports and isolated RS-232 and RS-485 serial ports.
Built-in web, FTP, Telnet and SSH servers help with remote administration, and a LinPAC SDK supports application development in GNU C. Redundant power input with an alarm relay, dual watchdog timers and a 64-bit hardware serial number complete the feature set.
Applications
- HMI integration with local control and data logging
- Data acquisition and control with local or remote I/O expansion
- Linux-based automation projects developed with the LinPAC SDK
- Industrial control panels mounted on DIN-rail or wall
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB, VGA |
| Relay outputs: | 1 |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| OS | Linux kernel 4.14.12 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | E3845 (1.91 GHz, quad core) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF card slot |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB), HDMI |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
| Status | 2 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | 7 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (Console, 3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 20.4 W (0.85 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 422 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
