iWSN-9603-RCT500P-ME-IP33 Wireless 3-Phase Power Meter, 500A Rogowski CT
Wireless 3-phase power meter with six 500A Rogowski CTs, 433 MHz radio and power drawn from the measured voltage cable. Suited to monitoring energy use across machines and processes.
- Measures 2-loop 3-phase or 4-loop single-phase AC circuits with six 500A Rogowski CTs
- Supports 3P4W, 3P3W, 3P3W 2CT, 1P3W and 1P2W wiring types
- Powered from the measured voltage cable (100 - 480 VAC, 58 - 277 VAC single phase), no extra power wiring
- Reports True RMS voltage and current, active power, bi-directional kWh, power factor and frequency
- 433 MHz wireless with up to 64 sub-networks and a built-in omni-directional antenna
- RTC timestamps on each measurement and a 3-minute history data cache
2 011,00 € per piece
| 1–9 pcs | 2 011,00 € | |
|---|---|---|
| 10–30 pcs | 1 950,00 € | −3 % |
| 31+ pcs | 1 910,00 € | −5 % |
Информация за продукта "iWSN-9603-RCT500P-ME-IP33 Wireless 3-Phase Power Meter, 500A Rogowski CT"

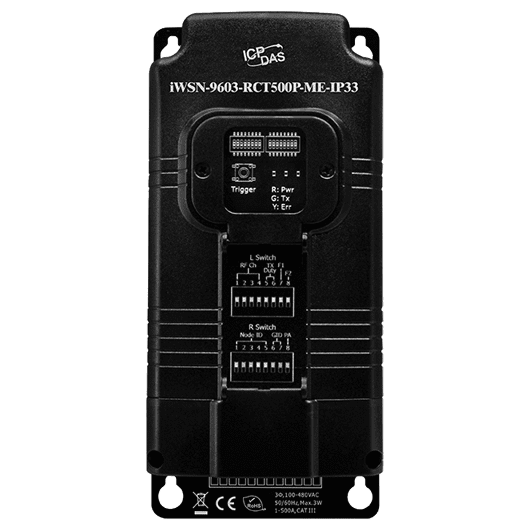

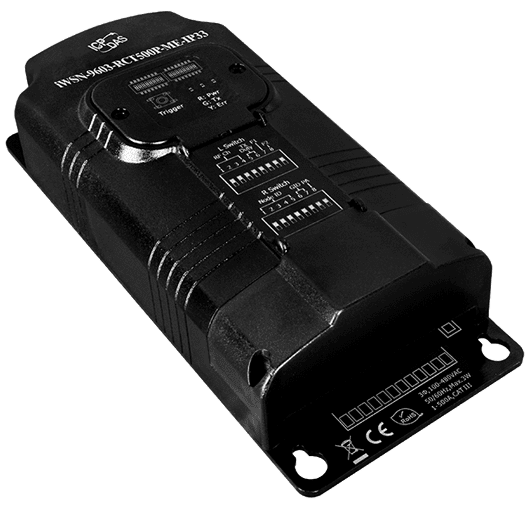

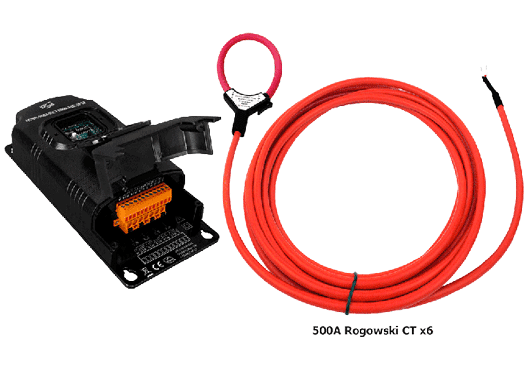

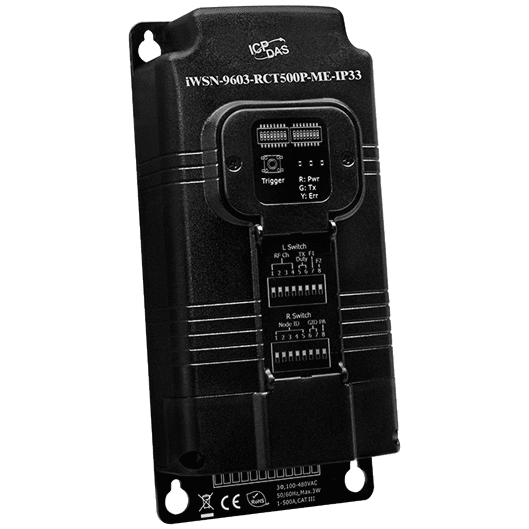

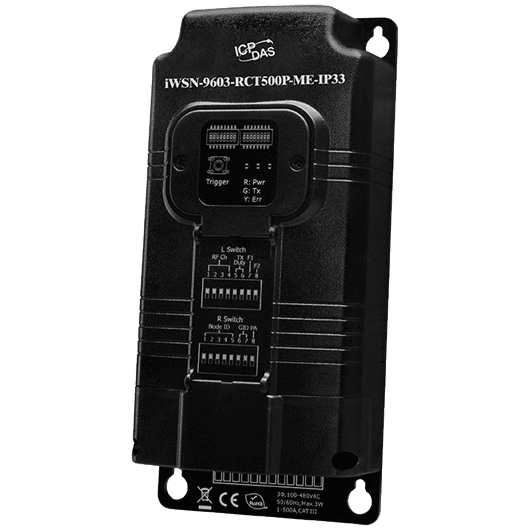

iWSN-9603-RCT500P-ME-IP33 is a wireless power meter for 3-phase or single-phase AC circuits. It takes one voltage input and up to two 3-phase loops, each measured with Rogowski current transformers. This 500A variant ships with six 55 mm inside-diameter CTs on 4 m leads, covering 5 A to 500 A. It is intended for engineers who need to read energy data from several loads fed by the same supply without running dedicated power wiring to the meter.
The meter draws its power from the measured voltage cable, so installation needs no separate supply. Measurements are sent over 433 MHz radio, and the unit can operate within up to 64 wireless sub-networks. A built-in RTC timestamps each reading, and a 3-minute history cache supplements the data when the link is interrupted. Configuration is done with DIP switches.
The housing is rated IP33 and is wall-mounted, which suits installations outside a panel box where fire sprinkler systems may be active. A connector cover guards against accidental contact with live connections.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | 433 MHz RF |
| Power input: | 100 - 480 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Specifications
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 4(Single Phase)/ 2(Three Phase) |
| Input Voltage | 100 - 480 VAC (58 - 277 VAC single phase) |
| Input Current | iWSN-9603-RCT500P-ME-IP33: CTØ55 mm (5A ~ 500 A) iWSN-9603-RCT1000P-ME-IP33: CTØ80 mm (5 A ~ 1000 A) iWSN-9603-RCT2000P-ME-IP33: CTØ105 mm (5 A ~ 2000 A) |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 2% (PF=1) Condition: Input current > 50A; (For -500P, -1000P) Input current > 200A; (For -2000P) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Antenna | |
| Type | Built-in Omni-directional antenna |
| Power | |
| Consumption | 3W |
| Input Type | Three phase 100 - 480 VAC (58 - 277 VAC single phase) |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
